Sonance PS-C85RT Commercial Speaker
$0.00

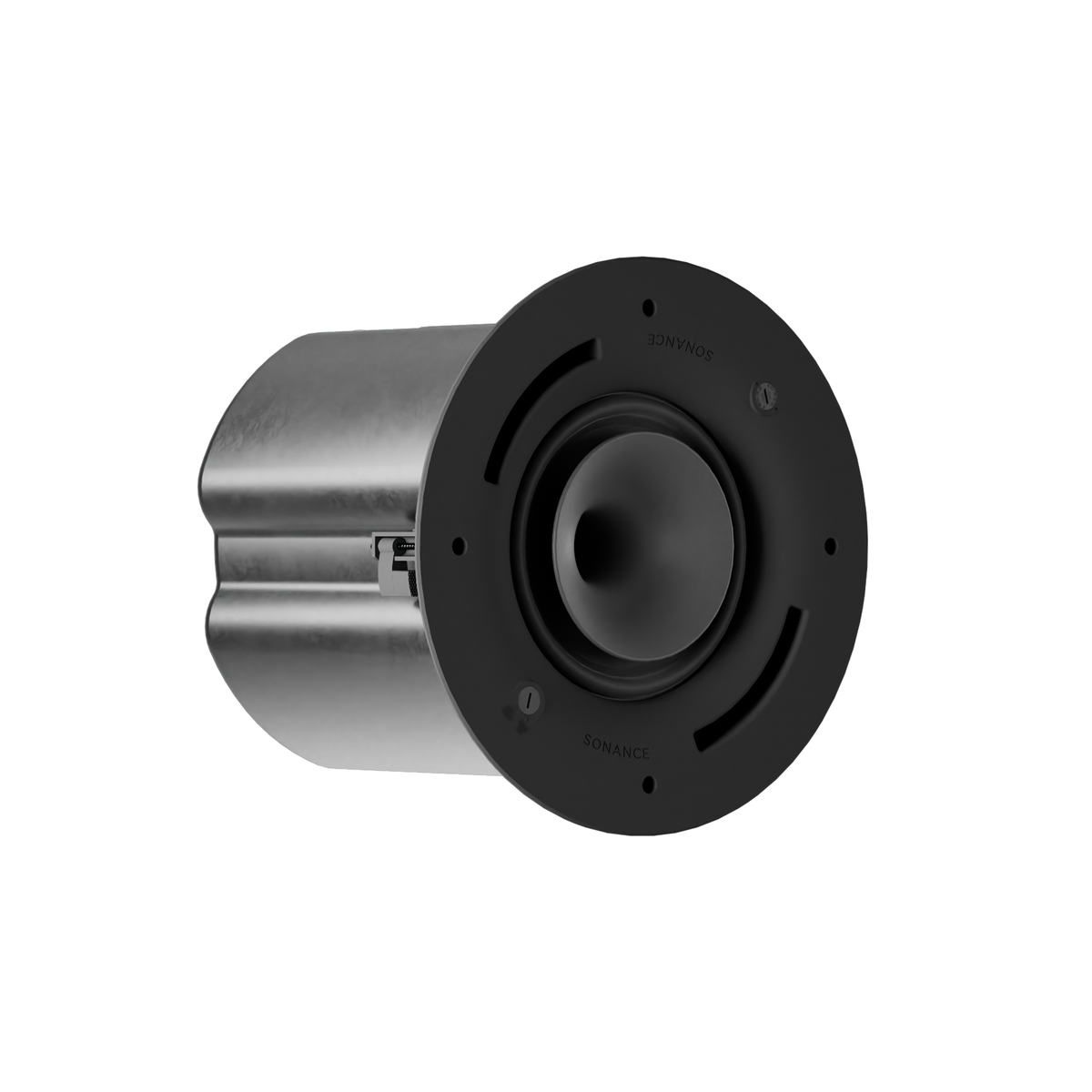

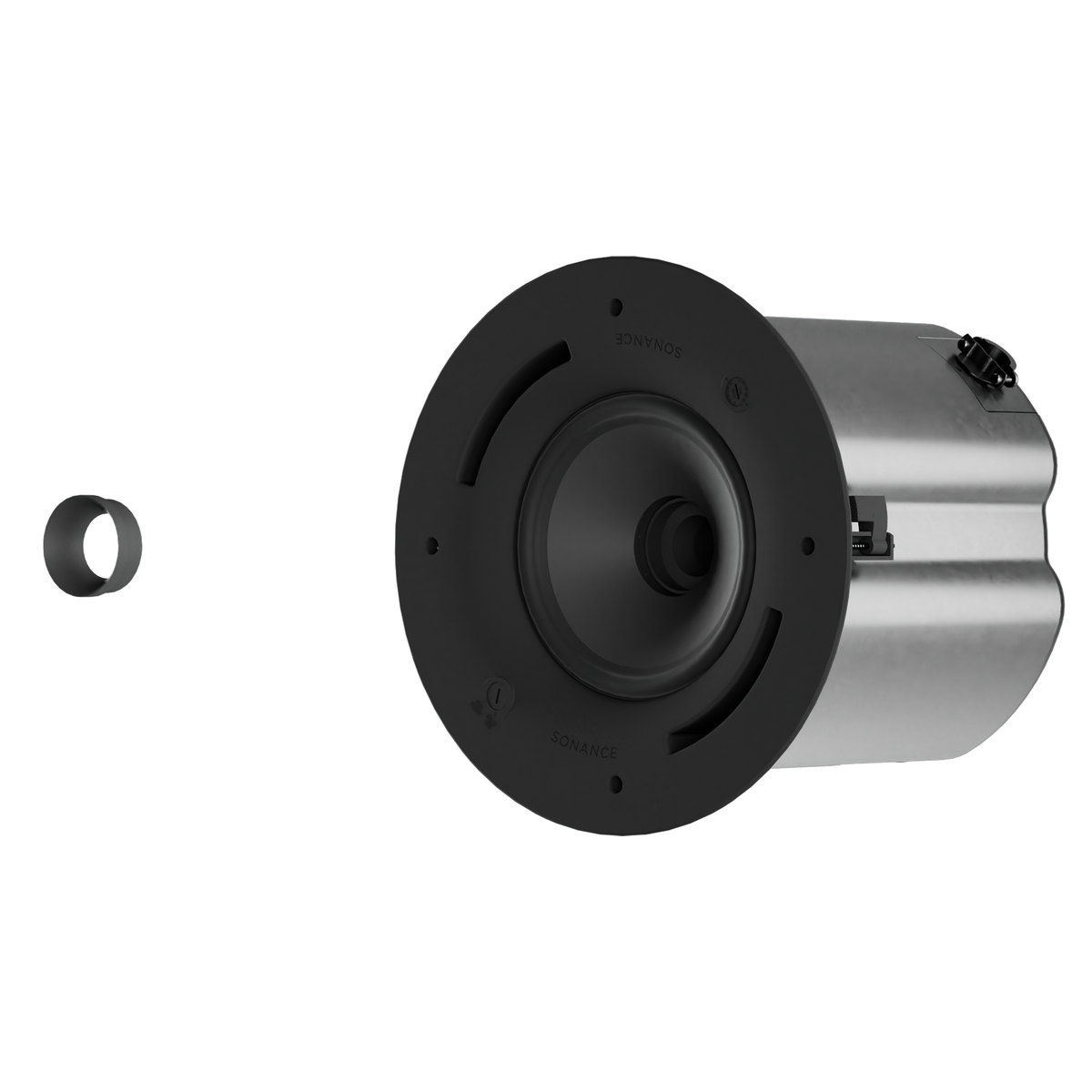

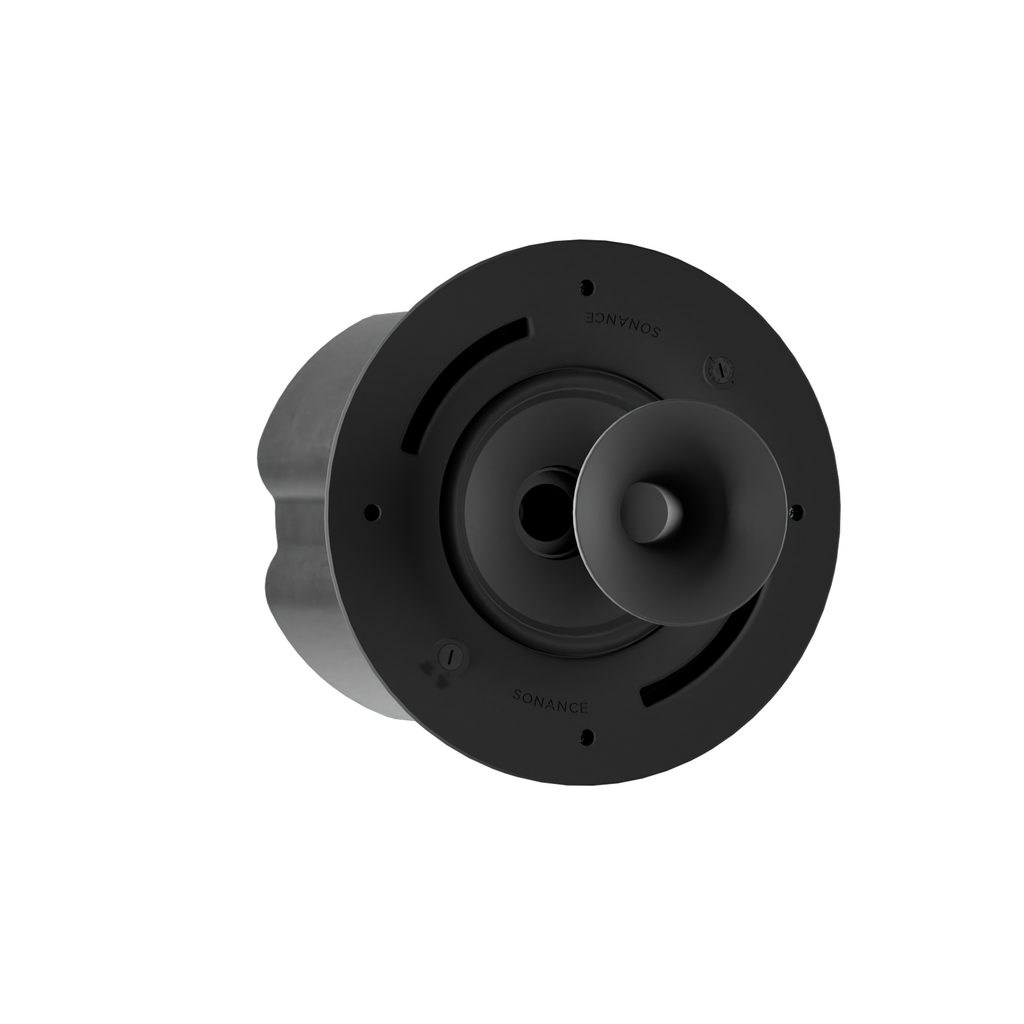

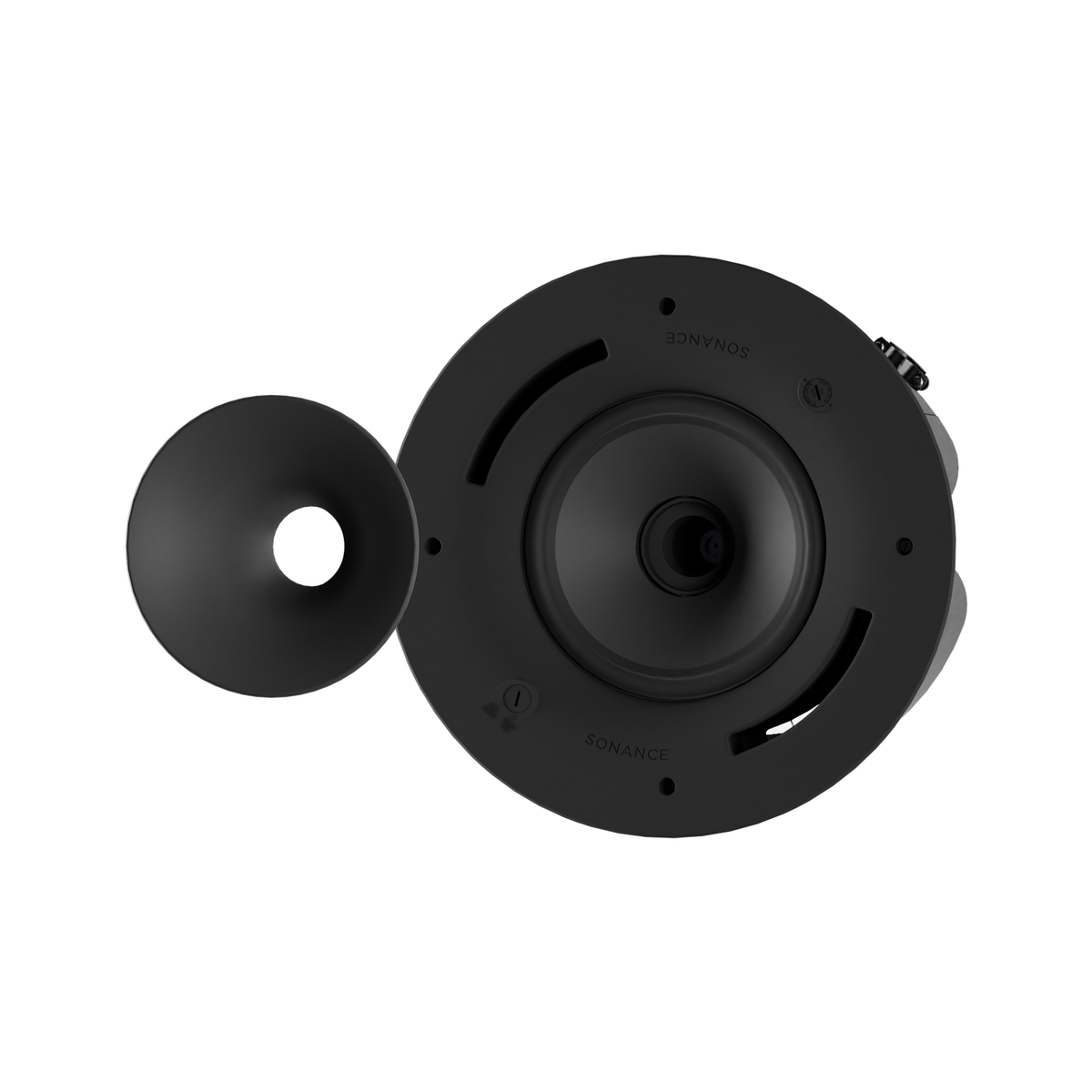

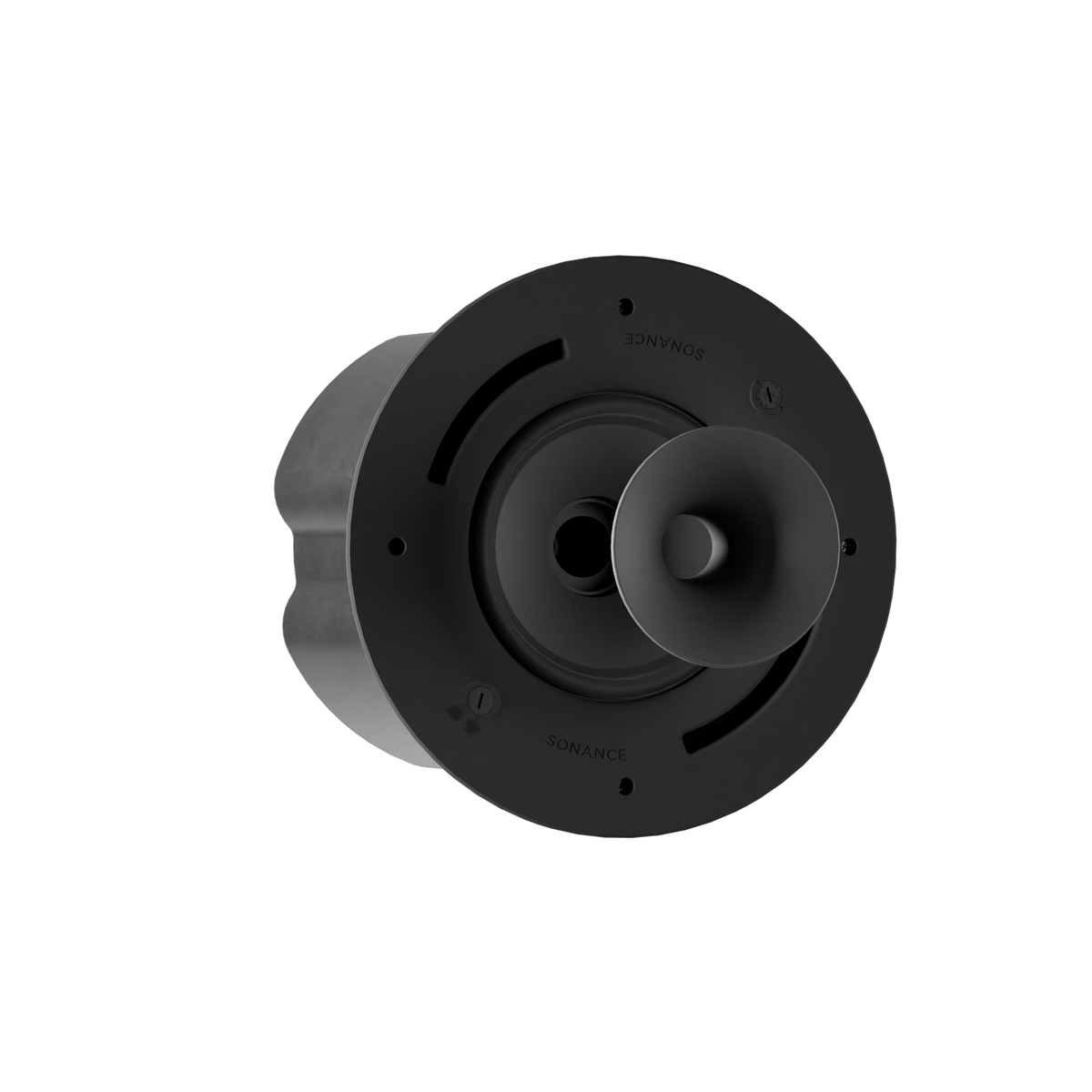

The PS-C85RT is a high-output in-ceiling loudspeaker engineered for demanding commercial environments. Featuring an 8" aluminum cone woofer, 1.4" neodymium compression driver, and selectable horn or collar dispersion, it delivers 93dB sensitivity and up to 117dB SPL with full 70V/100V distributed audio compatibility. Explore the full high-output family here.
Specifications
- HF Driver: 1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymiu...
- LF Driver: 8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
- Frequency Response (+/- 10db): 39.8Hz - 25kHz
- Frequency Response (+/- 3db): 53.3Hz - 20kHz
- Power Handling (RMS): 150 watts (600 watts peak), 100 hours
- Sensitivity: 93dB (2.83V/1m)
- Enclosure: PC/ABS (UL94V-0), Steel, Powder coated
- Rated Maximum SPL: 112dB @ 1 meter (3.3 feet), 118dB peak
- Nominal Impedance (Ohms): 8 ohms
- Transformer Taps: 70 V / 100 V: 120W, 60W and 30W
- 70 V: 15W: Coverage Pattern 1kHz to 10kHz
- 120 or 80 Degree Axis Symmetric: Dimensions (Diameter x D)
- 13.27" x 10.8" (337.06mm x 274.32mm): Cut-Out Dimensions (Diameter)
- 11.625" (295.28mm): Weight

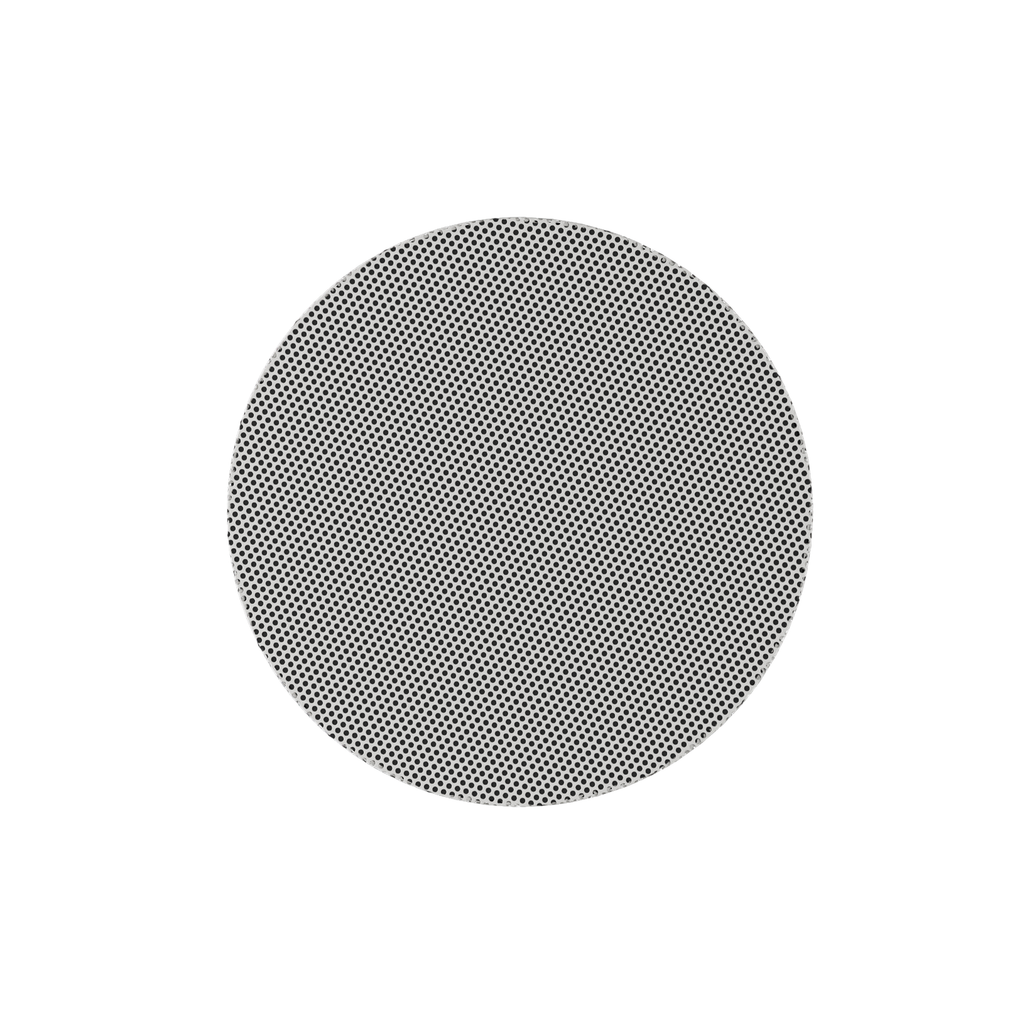

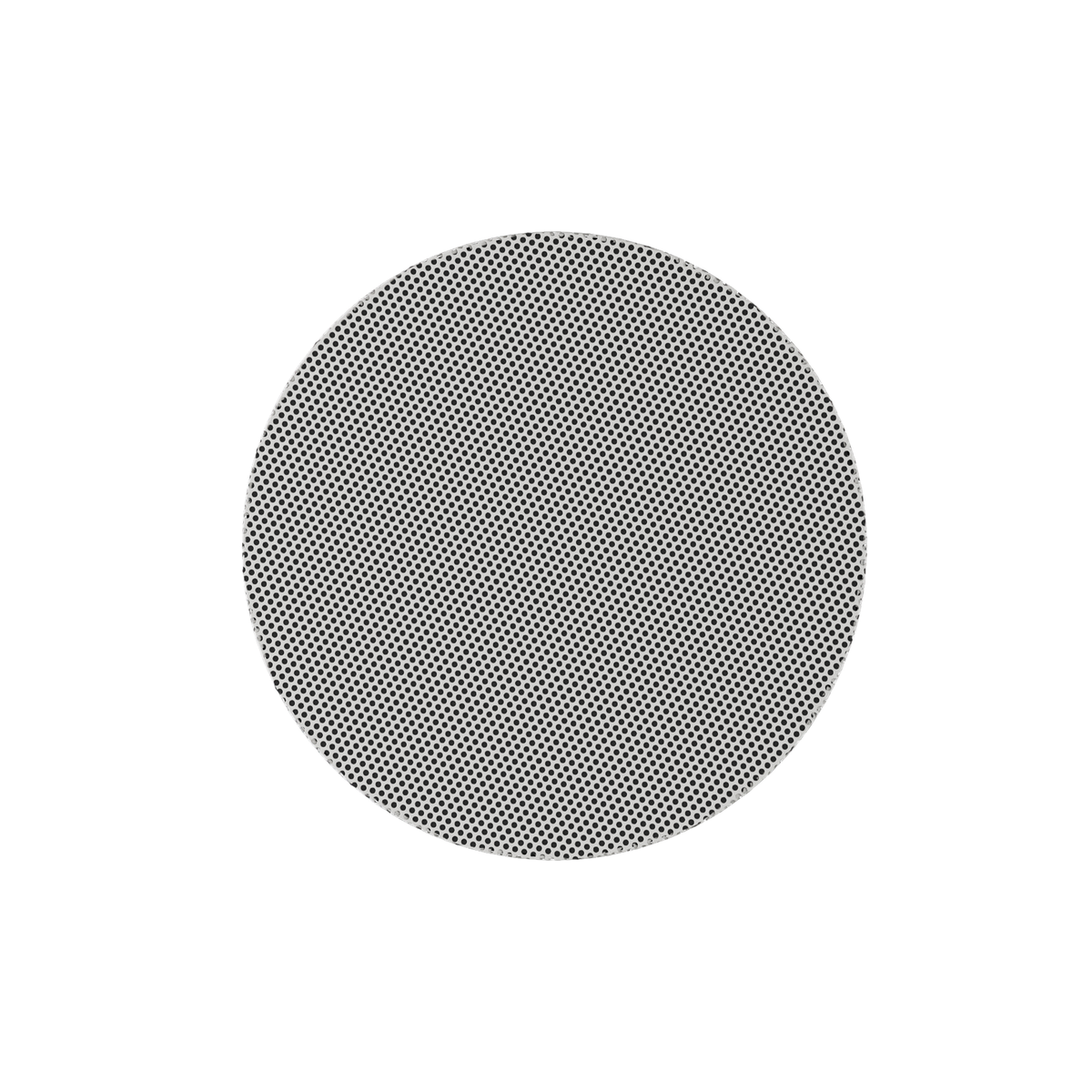

- 26.04 lbs. (11.81kg): Grille
- Steel: Input Connector
- Four pin, Euroblock with loop output connections: Certifications
- UL 1480A, UL 2043, NFPA 90A, NFPA 70: Suspension Points
- Two, on top surface: Maximum SPL (Peak)
- 118dB peak: Architectural Specifications
