Blaze by Sonance PowerZone Connect 1008D DSP Power Amplifier
$0.00
Overview

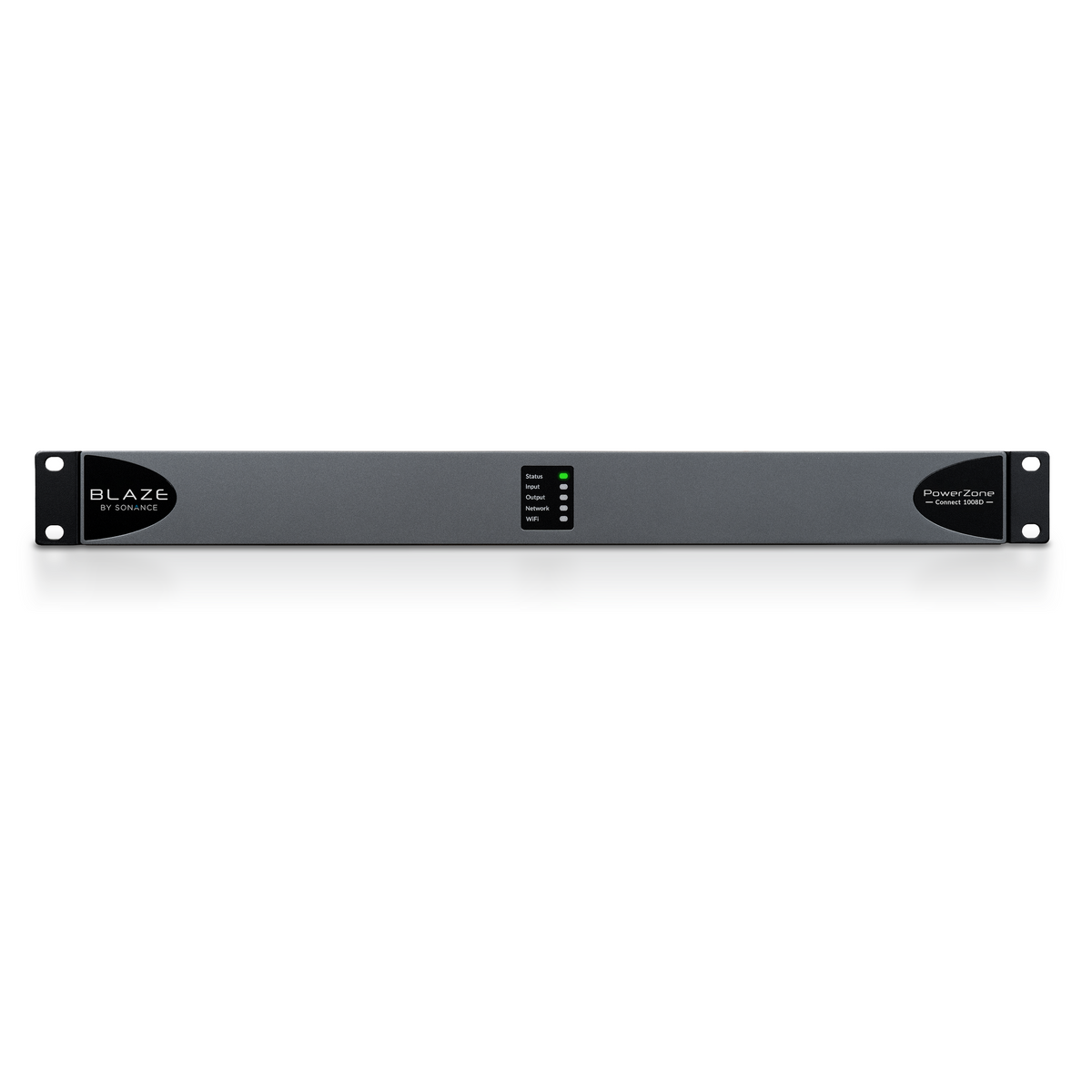

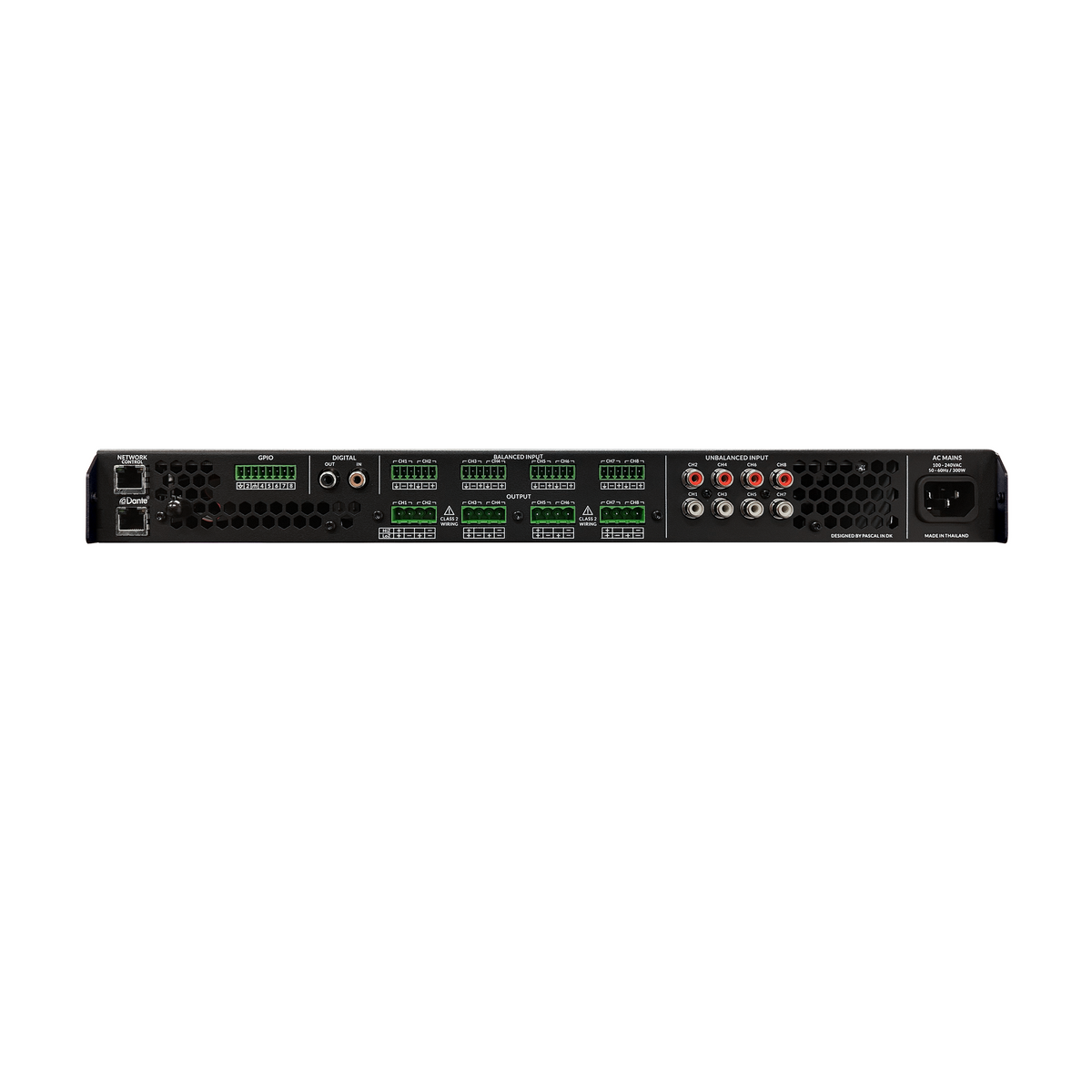

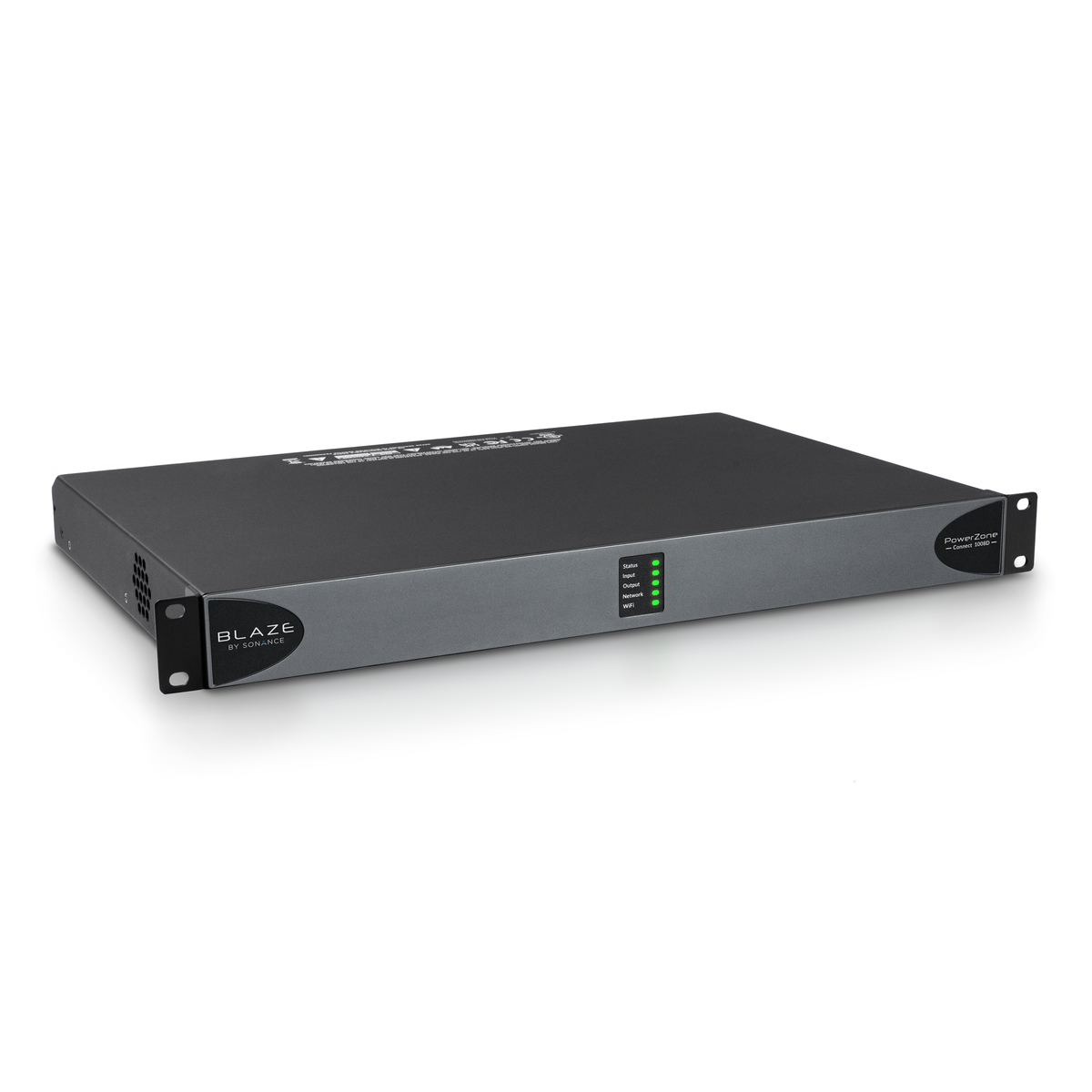

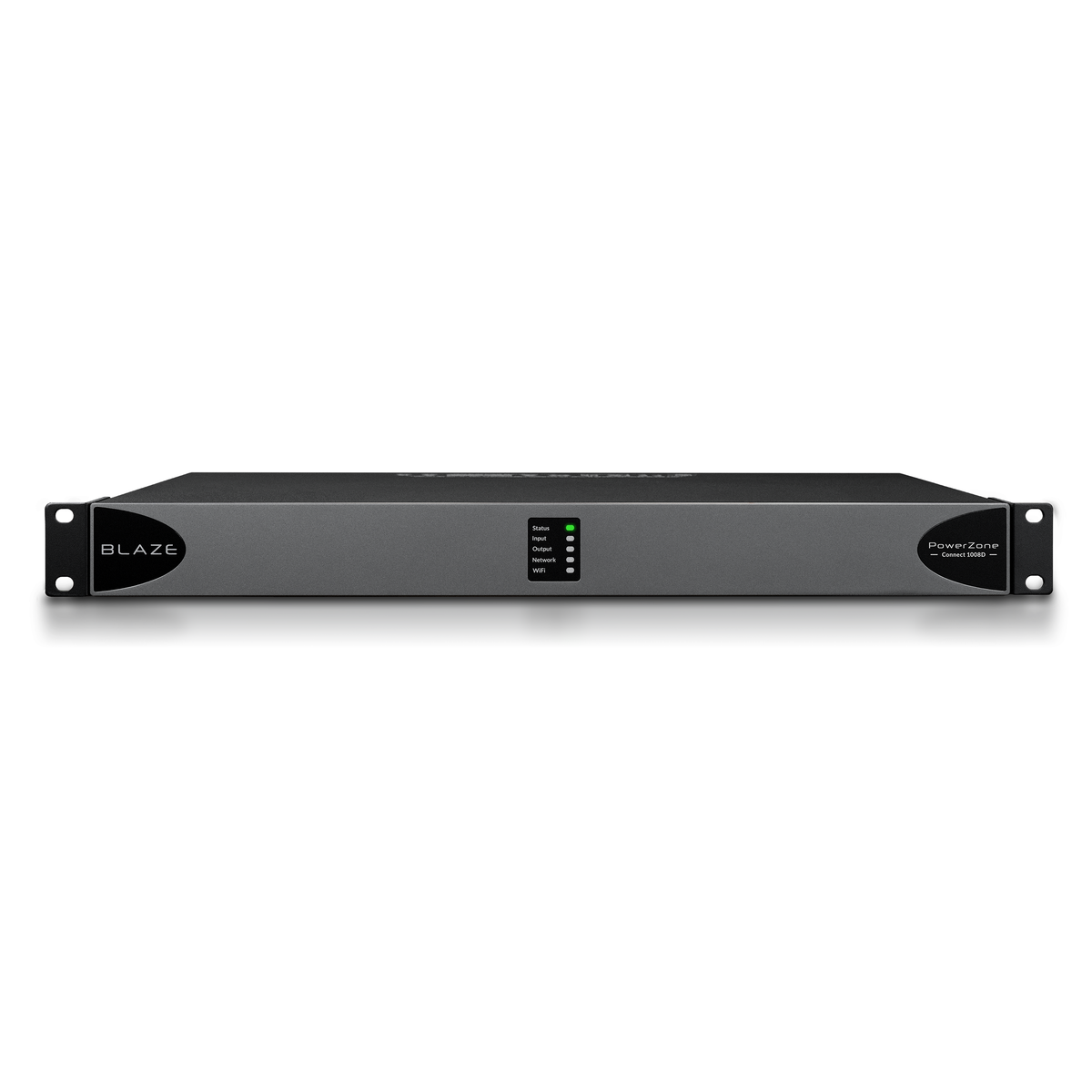

Blaze by Sonance PowerZone Connect 1008D is a 1000 W DSP-enabled Class-D power amplifier for installed audio systems. Its 1U format combines amplification with built-in PowerZone Control processing. This model includes Dante audio networking.
Key Features
- 1RU form factor
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC Class-D technology
- Dante Ultimo chip 4×4 (4-channels)
- S/PDIF input/output
- Configurable GPIO
- ErP compliant
- UL listed audio equipment
- UREC universal power supply with PFC
- 5 Year warranty
Technical Specifications
| SKU | UBX-888-031 (PowerZone Connect 1008D) |
|---|---|
| Dimensions (WxHxD) | 17.3" x 1.7" x 12.6" (439.42mm x 43.18mm x 320.04mm) |
| Weight | 8.4 lbs. (3.81kg) |
| Channel Configuration | Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W |
| Total System Power | 1000 W |
| Output Power @ 2 ohms | 0 |
| Output Power @ 4 ohms | 8 x 125 W |
| Output Power @ 8 ohms | 8 x 125 W |
| Output Power @ 70V | 4 x 250 W |
| Output Power @ 100V | 4 x 250 W |
| Powersharing | <= 2 X 250 W |
| Power Consumption | 300 W |
| Built-in DSP | Yes |
| Dante Compatibility | Yes |
| Rack Units | 1U |
Installation and Documentation
For professional installation. Consult the official installation manual for wiring, load configuration and safety requirements.
