Blaze by Sonance PowerZone Connect 122 DSP Power Amplifier
$0.00
Overview

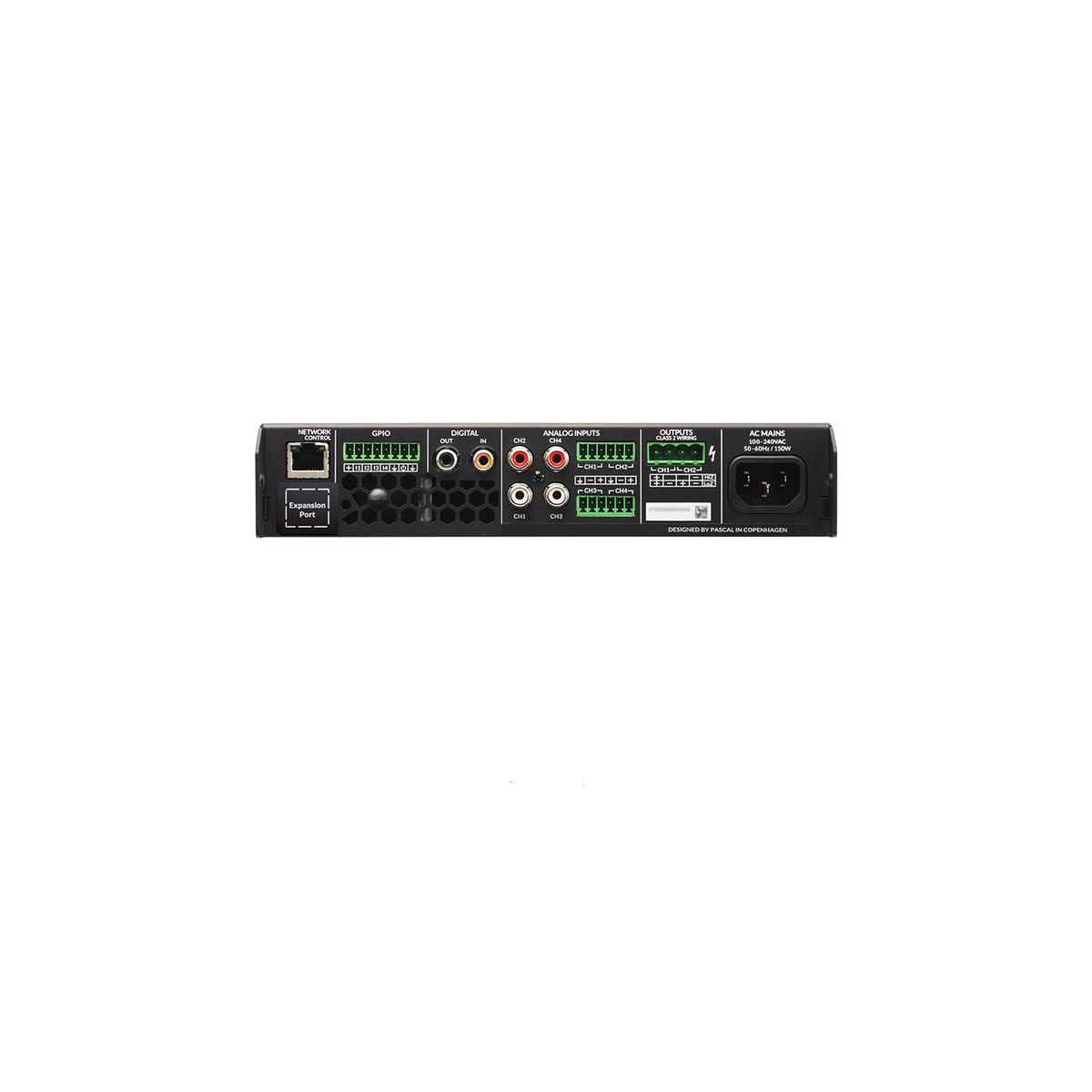

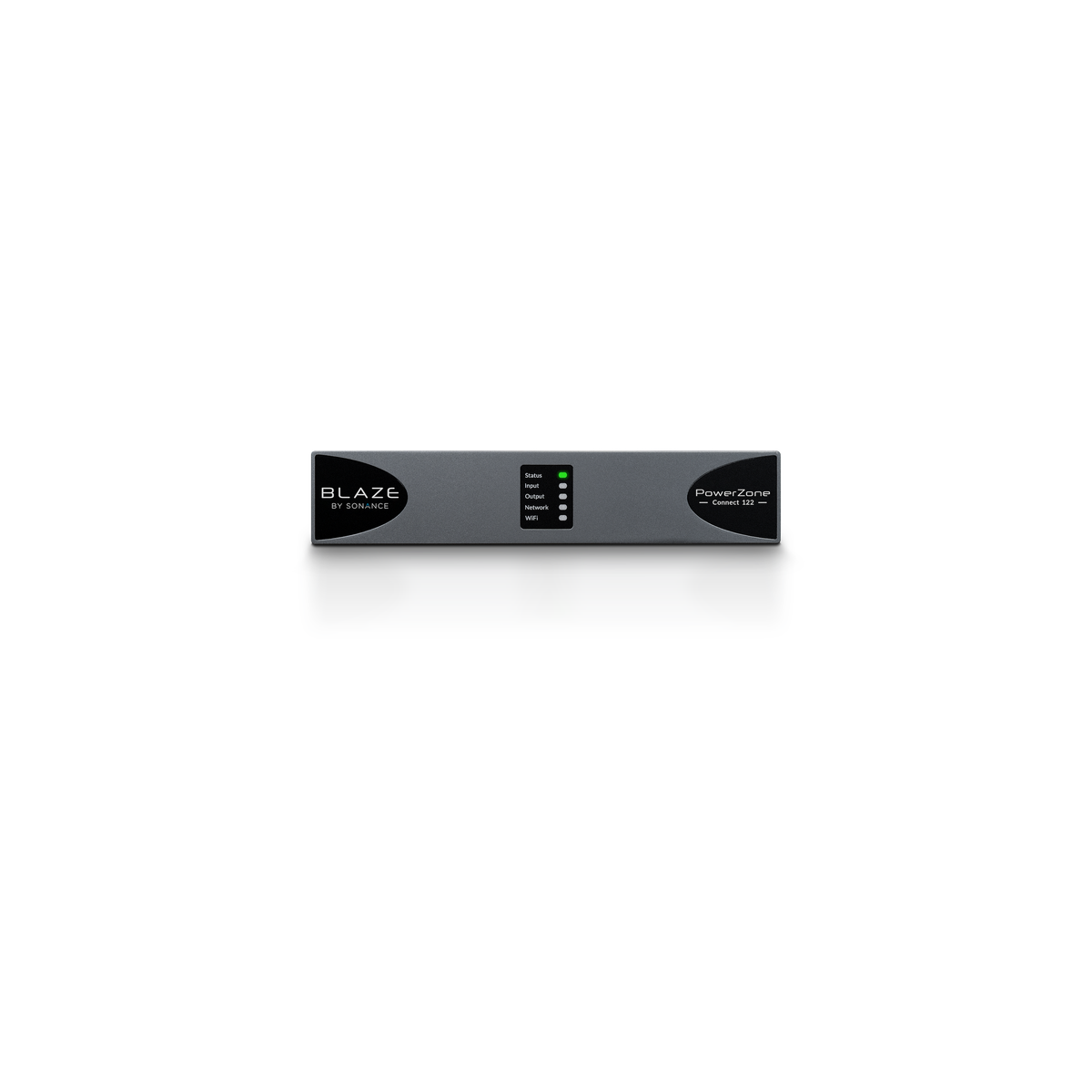

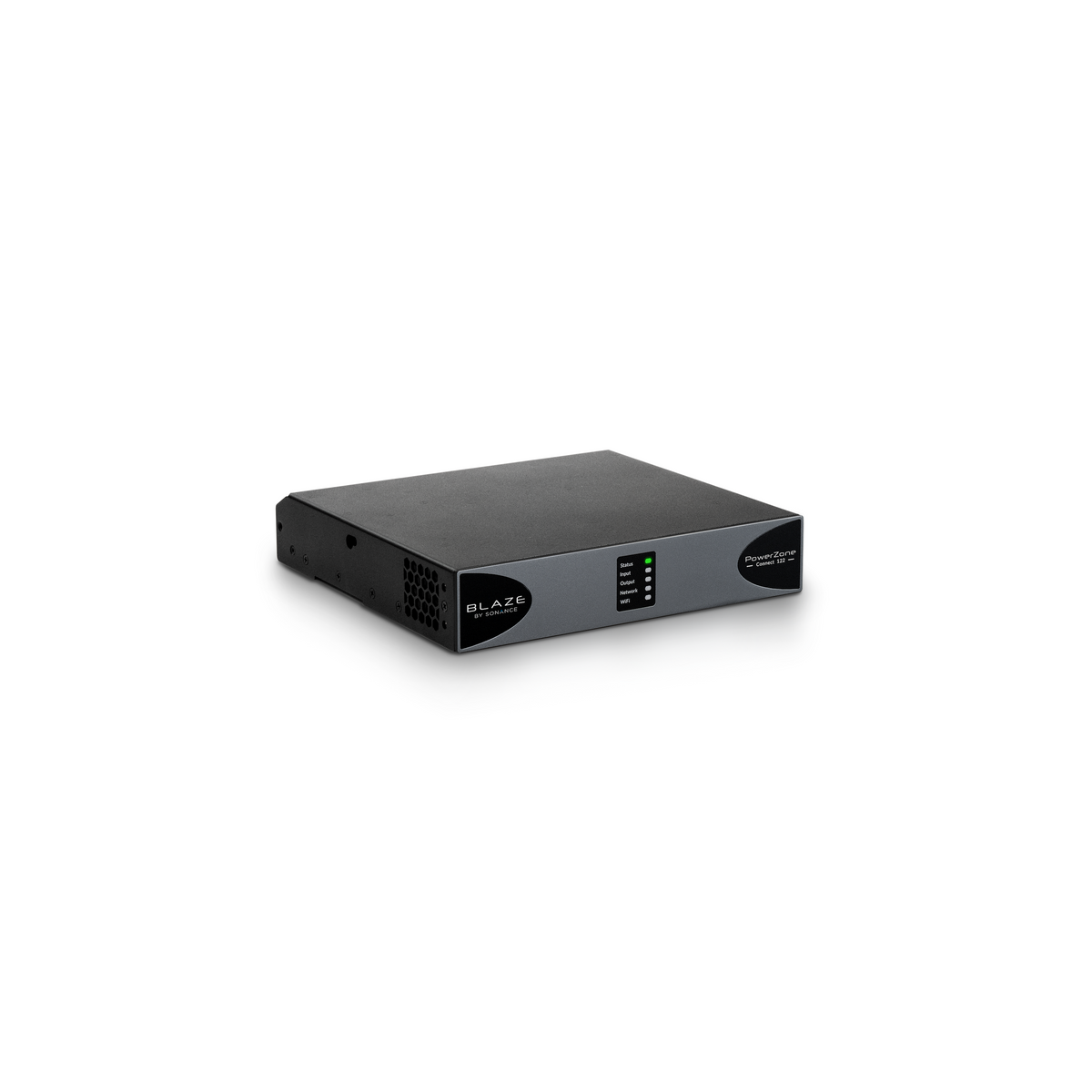

Blaze by Sonance PowerZone Connect 122 is a 125 W DSP-enabled Class-D power amplifier for installed audio systems. Its 1U Half Rack format combines amplification with built-in PowerZone Control processing.
Key Features
- Ultra-compact half rack form factor
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC Class-D technology
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP compliant
- UL listed audio equipment
- UREC universal power supply with PFC
- 5 Year warranty
Technical Specifications
| SKU | UBX-888-008 (PowerZone Connect 122), UBX-888-004 (PowerZone Connect 122 UNI) |
|---|---|
| Dimensions (WxHxD) | 8.7" x 1.7" x 8.4" (220.98mm x 43.18mm x 213.36mm) |
| Weight | 4.41 lbs. (2.0kg) |
| Channel Configuration | Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W |
| Total System Power | 125 W |
| Output Power @ 4 ohms | 2 x 60 W |
| Output Power @ 8 ohms | 2 x 60 W |
| Output Power @ 70V | 1 x 125 W |
| Output Power @ 100V | 1 x 125 W |
| Powersharing | <= 1 X 125 W |
| Power Consumption | 75 W |
| Built-in DSP | Yes |
| Dante Compatibility | No |
| Rack Units | 1U Half Rack |
Installation and Documentation
For professional installation. Consult the official installation manual for wiring, load configuration and safety requirements.
