Sonance PS-C83RT Commercial Speaker
$0.00

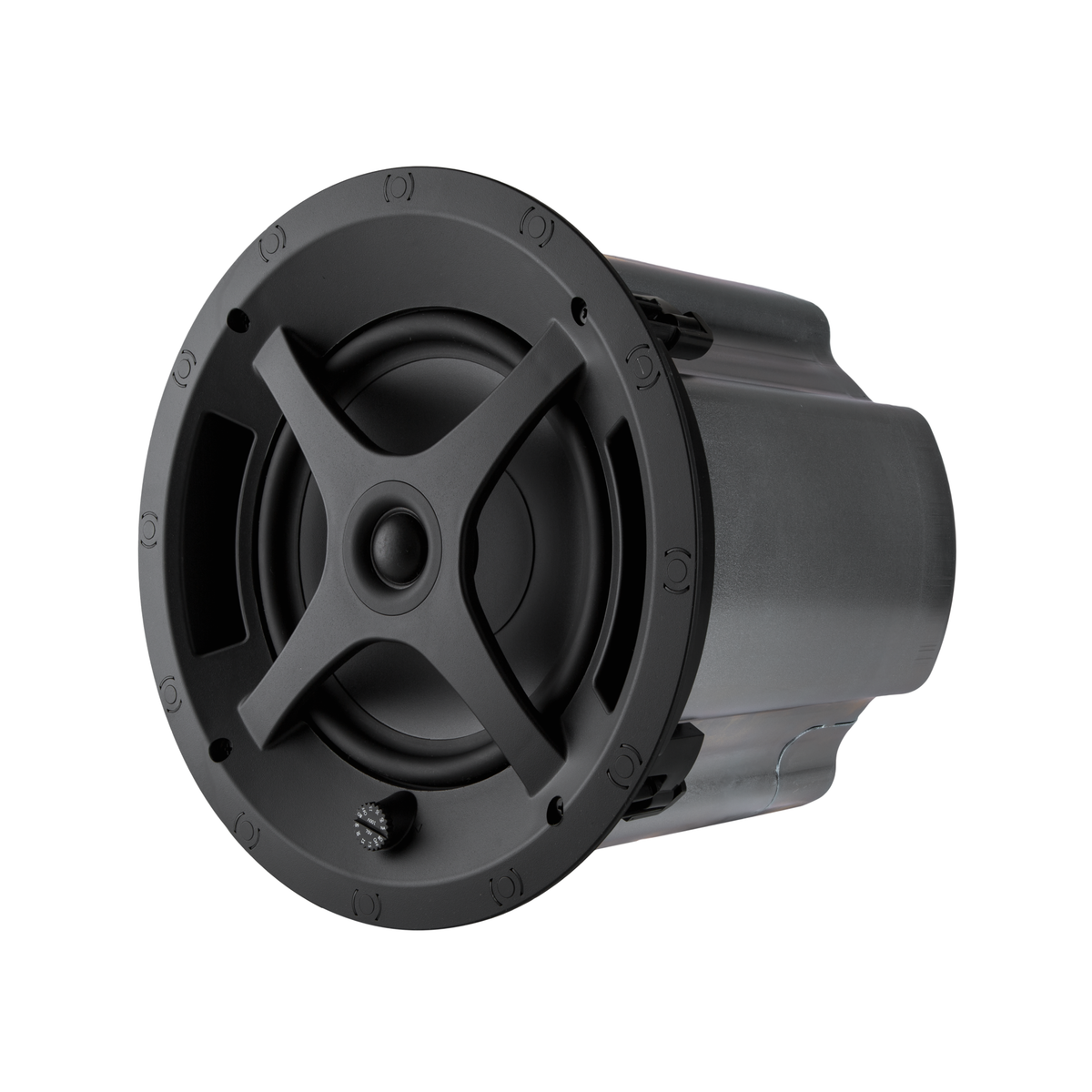

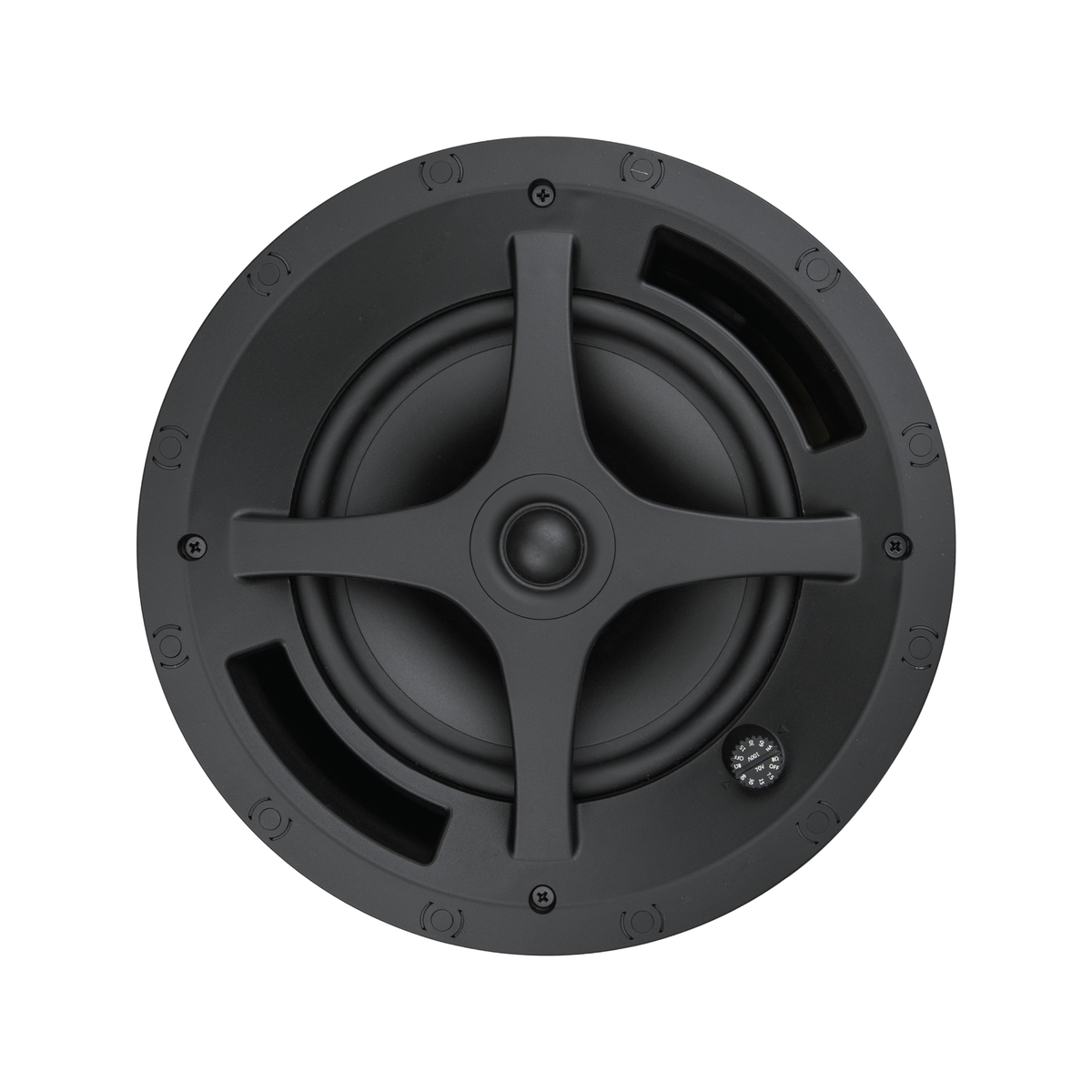

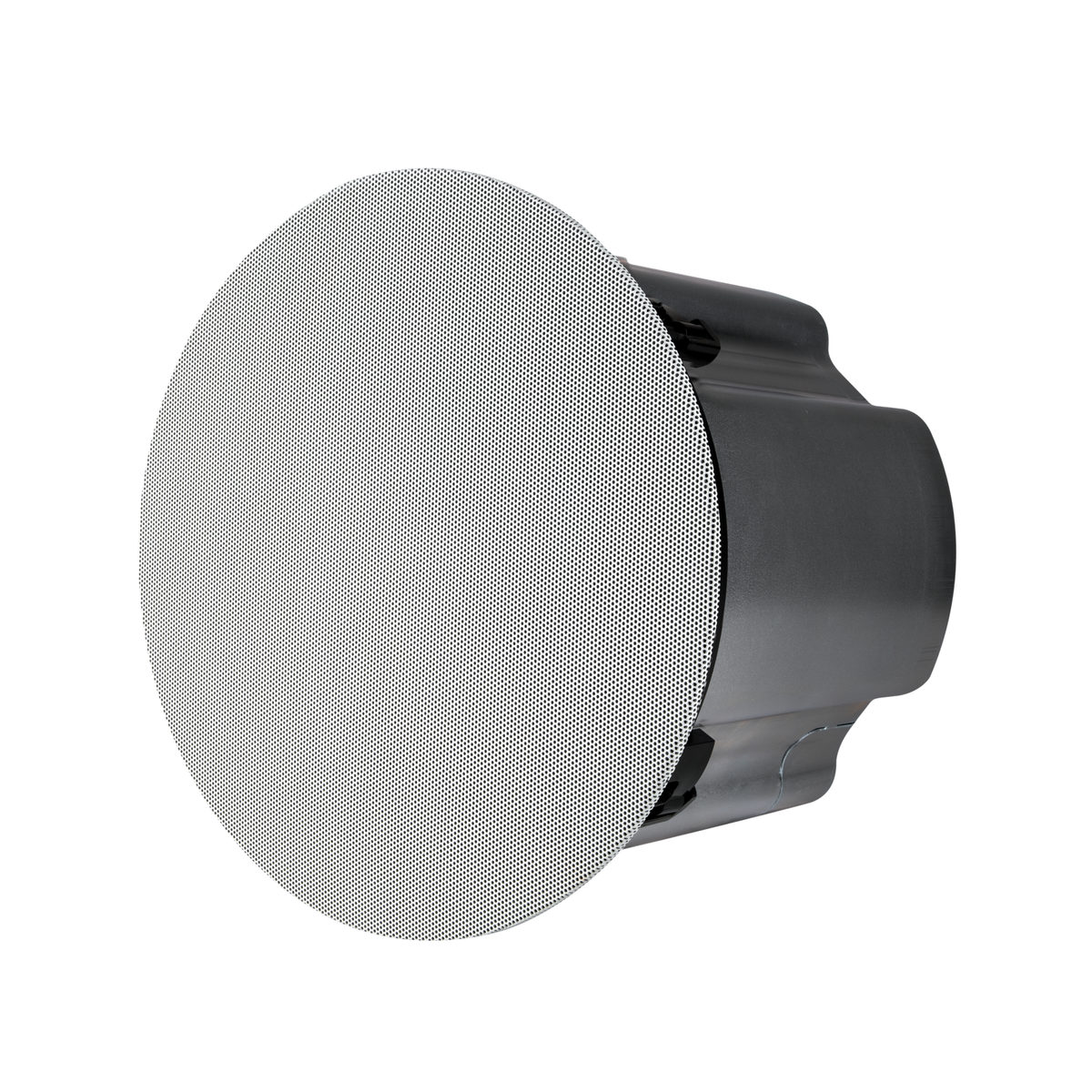

The Sonance PS-C83RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion 8" woofer, and pivoting tweeter for precise sound. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliable performance.
Specifications
- HF Driver: 1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
- LF Driver: 8" (203mm) Polypropylene Cone, Butyl Rubber Surround
- Frequency Response (+/- 10db): 41Hz-25kHz
- Frequency Response (+/- 3db): 55Hz - 20kHz
- Power Handling (RMS): 160W program, 80W pink noise
- Sensitivity: 91dB (2.83V/1m)
- Rated Maximum SPL: 110dB @ 1 meter (3.3 feet), 116dB peak
- Nominal Impedance (Ohms): 8 ohms
- Transformer Taps: 70 V / 100 V: 60W, 30W and 15W
- 70 V: 7.5W: Dimensions (Diameter x D)
- 11.06" x 9.84" (280.92mm x 249.94mm): Cut-Out Dimensions (Diameter)
- 10.125" (257.18mm): Knockout
- One, Side mounted 0.75" (19mm): Weight
- 13.41 lbs. (6.08kg): Grille
- One Piece Paintable Grille with Magnetic Retention: Input Connector
- Four pin, Euroblock with loop output connections: Certifications
- UL 1480, UL 2043, NFPA 90A, NFPA 70: Suspension Points
- One, on top surface: Maximum SPL (Peak)
- 116dB peak: Architectural Specifications
