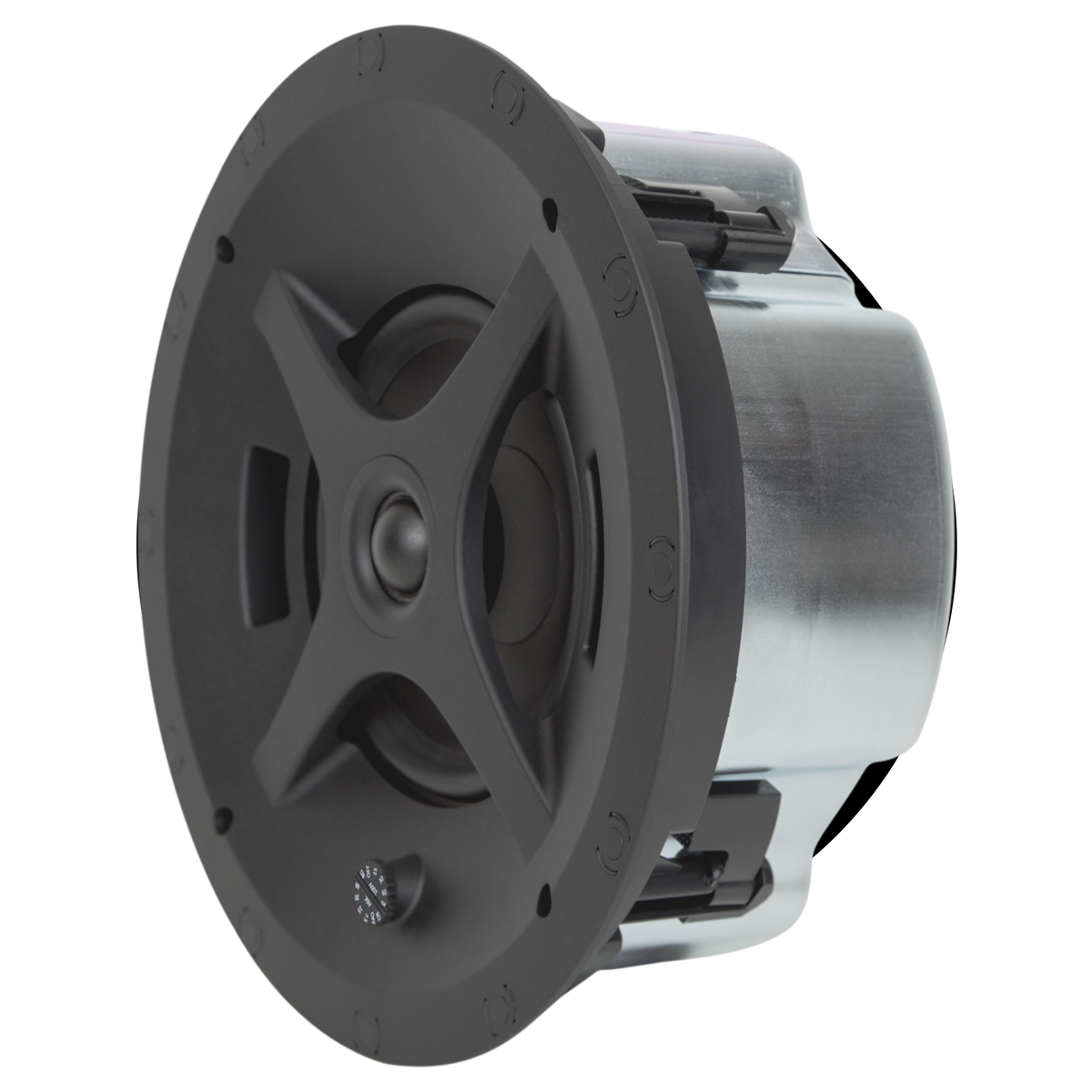

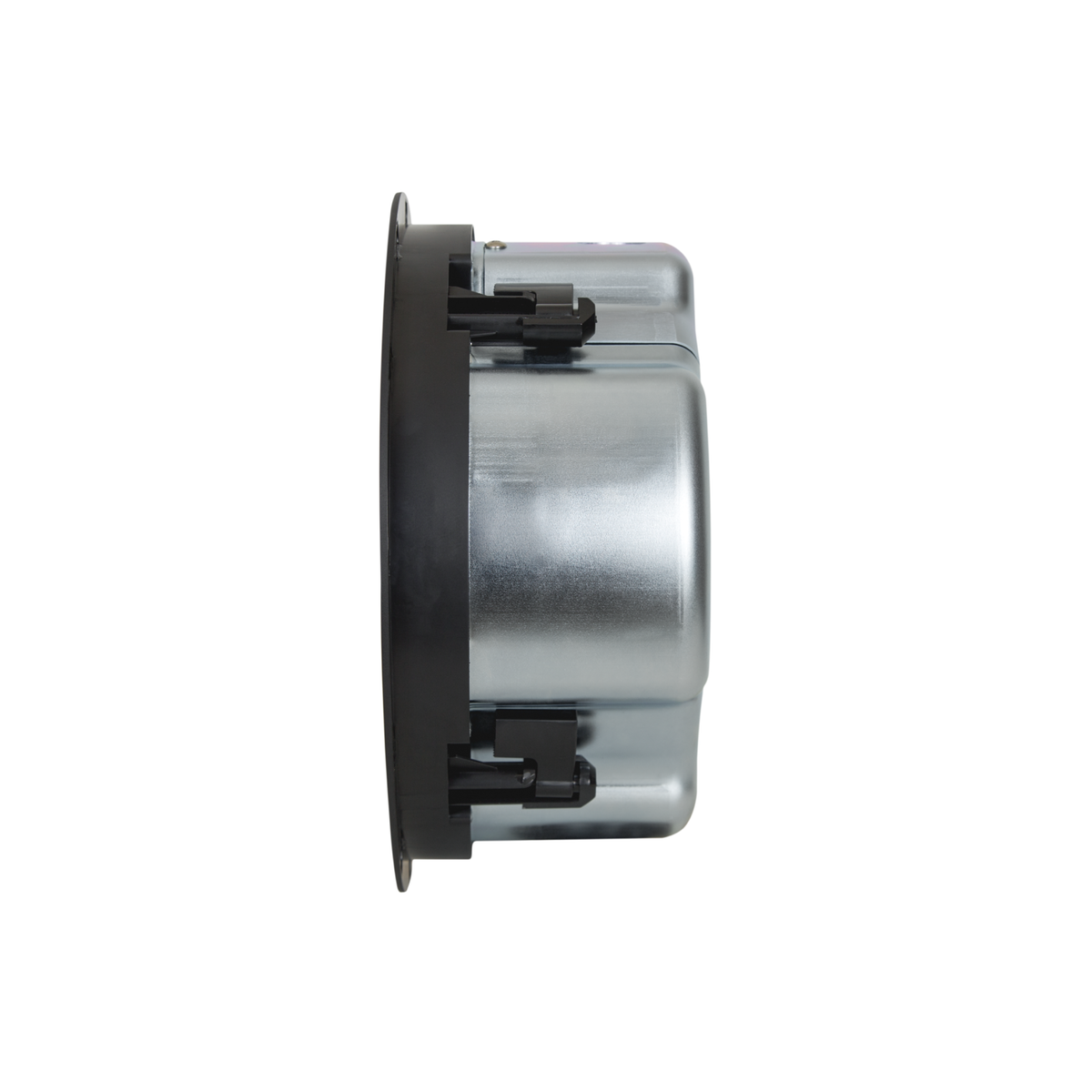

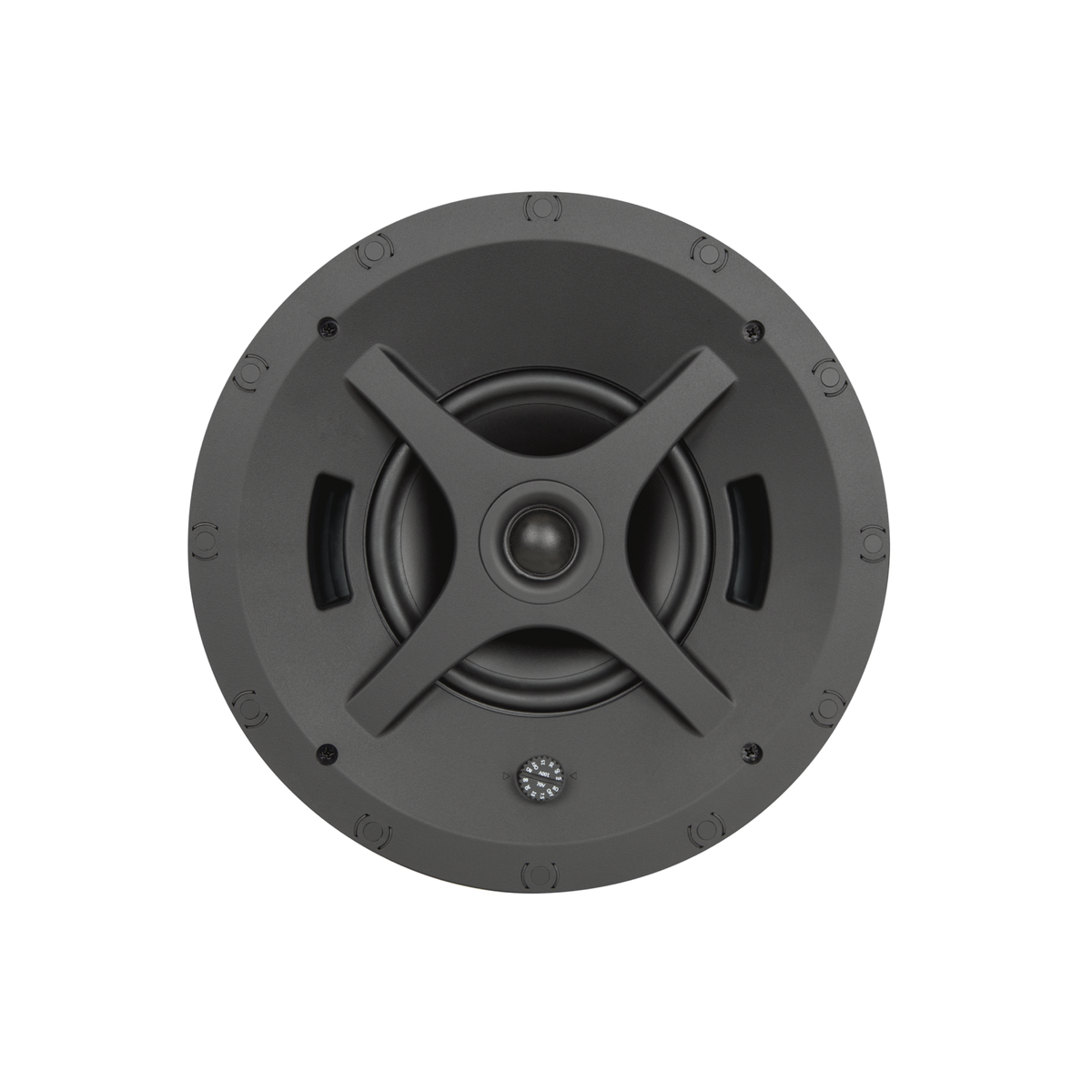

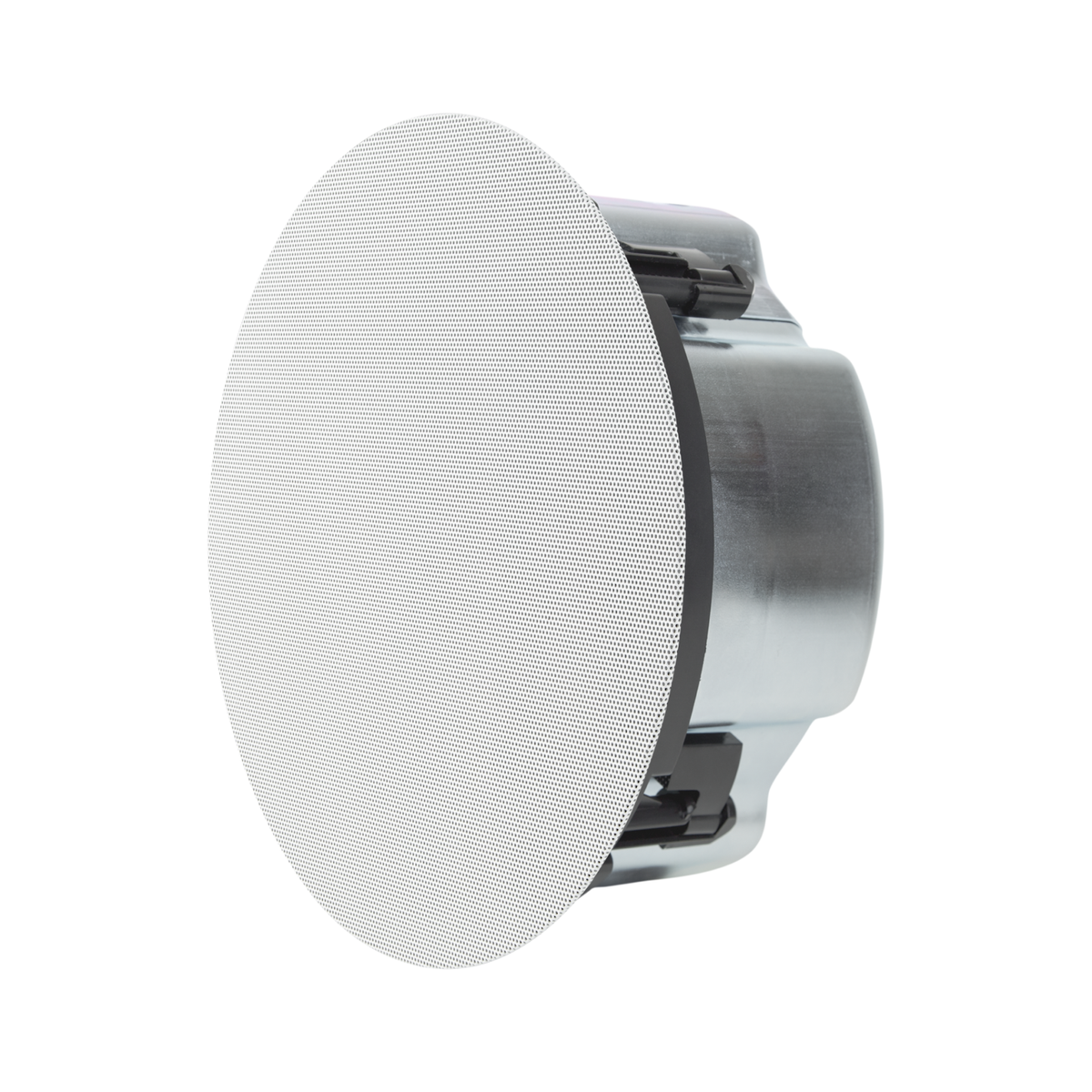

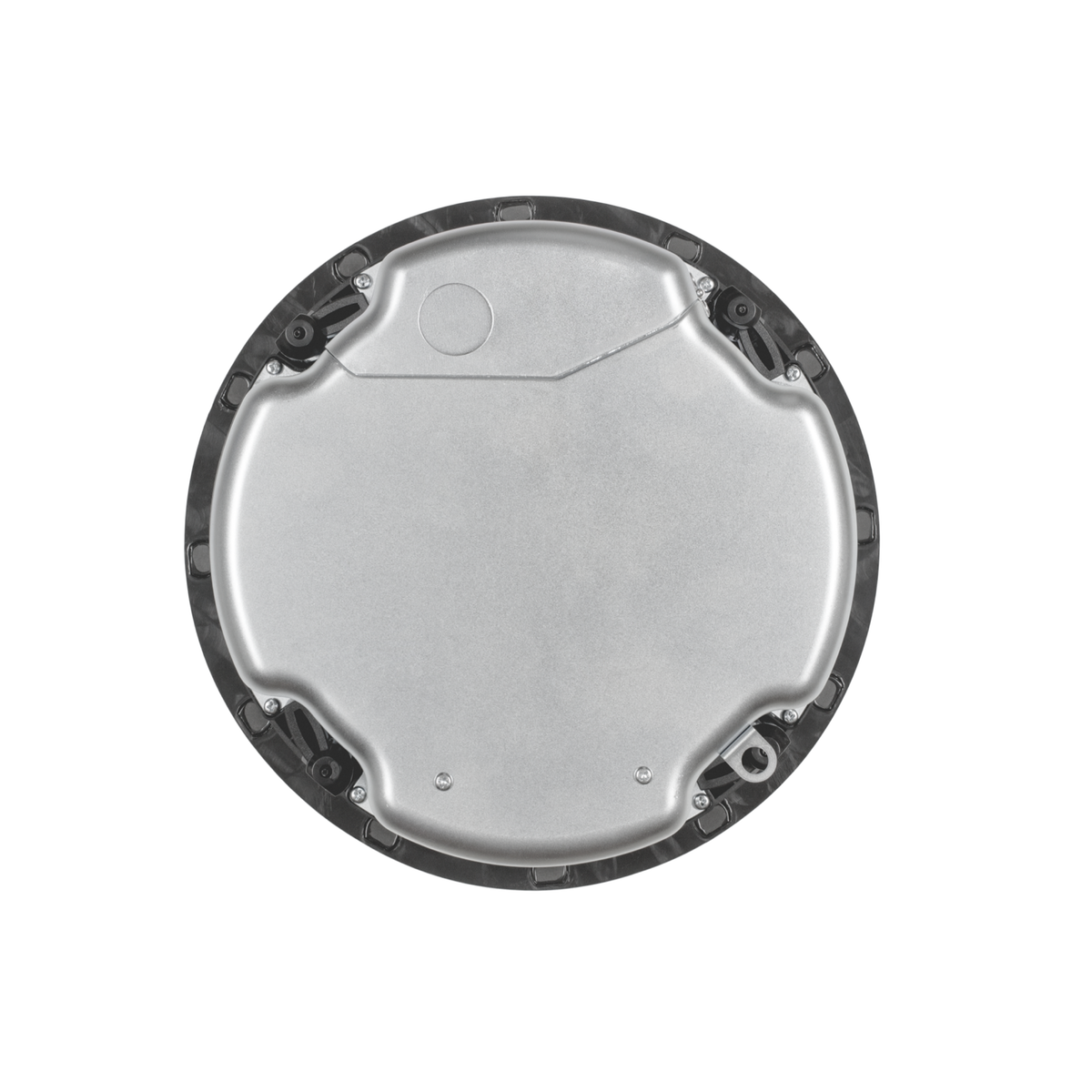

Sonance PS-C63RTLP Commercial Speaker
$0.00

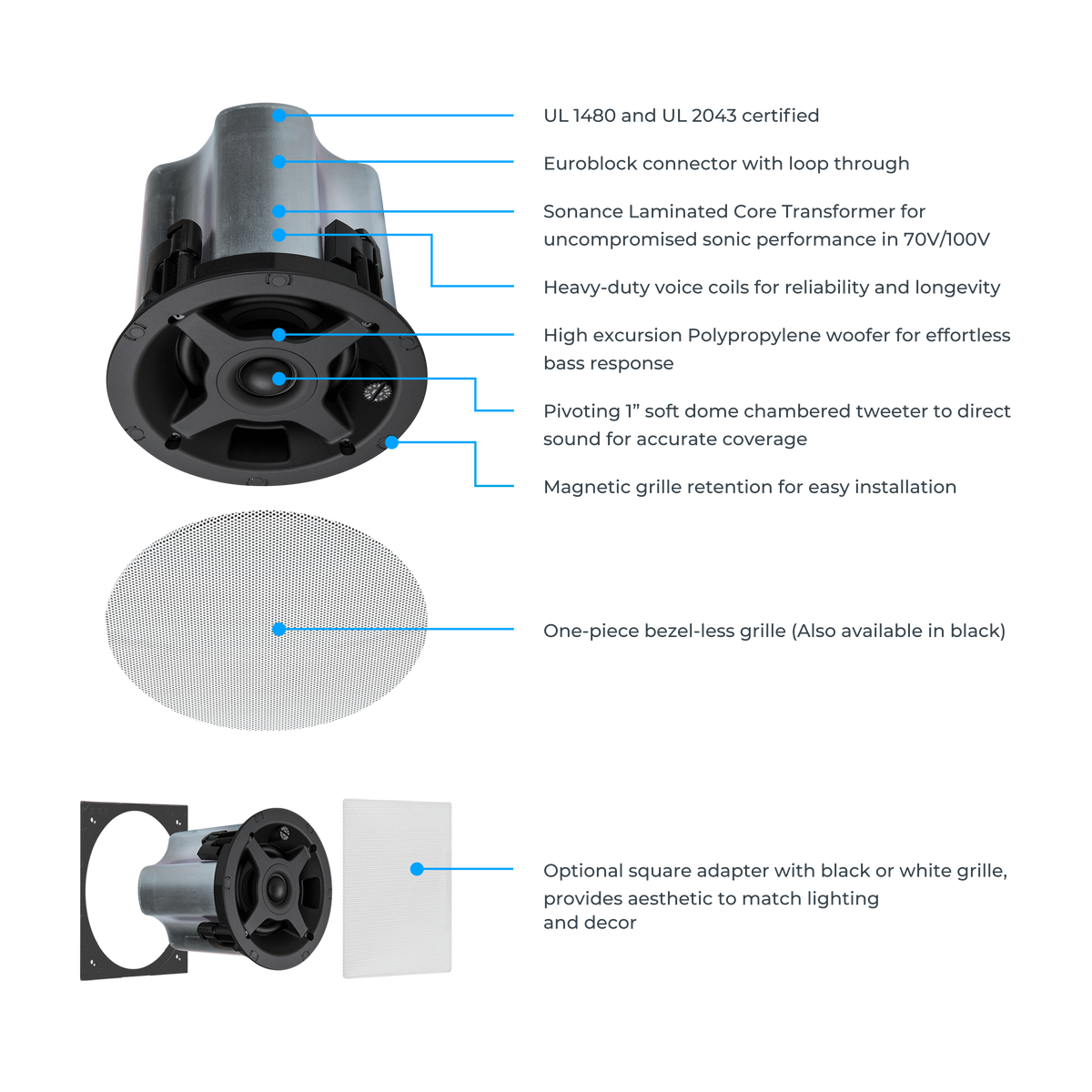

The Sonance PS-C63RTLP in-ceiling speaker has a shallow 4.37" design for tight spaces, a bezel-less magnetic grille, optional square adapter, high-excursion 6.5" woofer, and pivoting tweeter for precise sound. Its sealed metal enclosure includes knock-outs, a removable Euroblock connector, and seismic attachment. It is UL 1480 and UL 2043 certified.
Specifications
- HF Driver: 1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
- LF Driver: 6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
- Frequency Response (+/- 10db): 49Hz - 25kHz
- Frequency Response (+/- 3db): 65Hz - 20kHz
- Power Handling (RMS): 120W program, 60W pink noise
- Sensitivity: 91dB (2.83V/1m)
- Rated Maximum SPL: 108dB @ 1 meter (3.3 feet), 116dB peak
- Nominal Impedance (Ohms): 8 ohms
- Transformer Taps: 70 V / 100 V: 60W, 30W and 15W
- 70 V: 7.5W: Dimensions (Diameter x D)
- 11.06" x 4.37" (280.92mm x 111.0mm): Cut-Out Dimensions (Diameter)
- 10.125" (257.18mm): Knockout
- One, Side mounted 0.75" (19mm): Weight
- 10 lbs. (4.54kg): Grille
- One Piece Paintable Grille with Magnetic Retention: Input Connector
- Four pin, Euroblock with loop output connections: Certifications
- UL 1480, UL 2043, NFPA 90A, NFPA 70: Suspension Points
- One, on top surface: Maximum SPL (Peak)
- 116dB peak: Architectural Specifications
