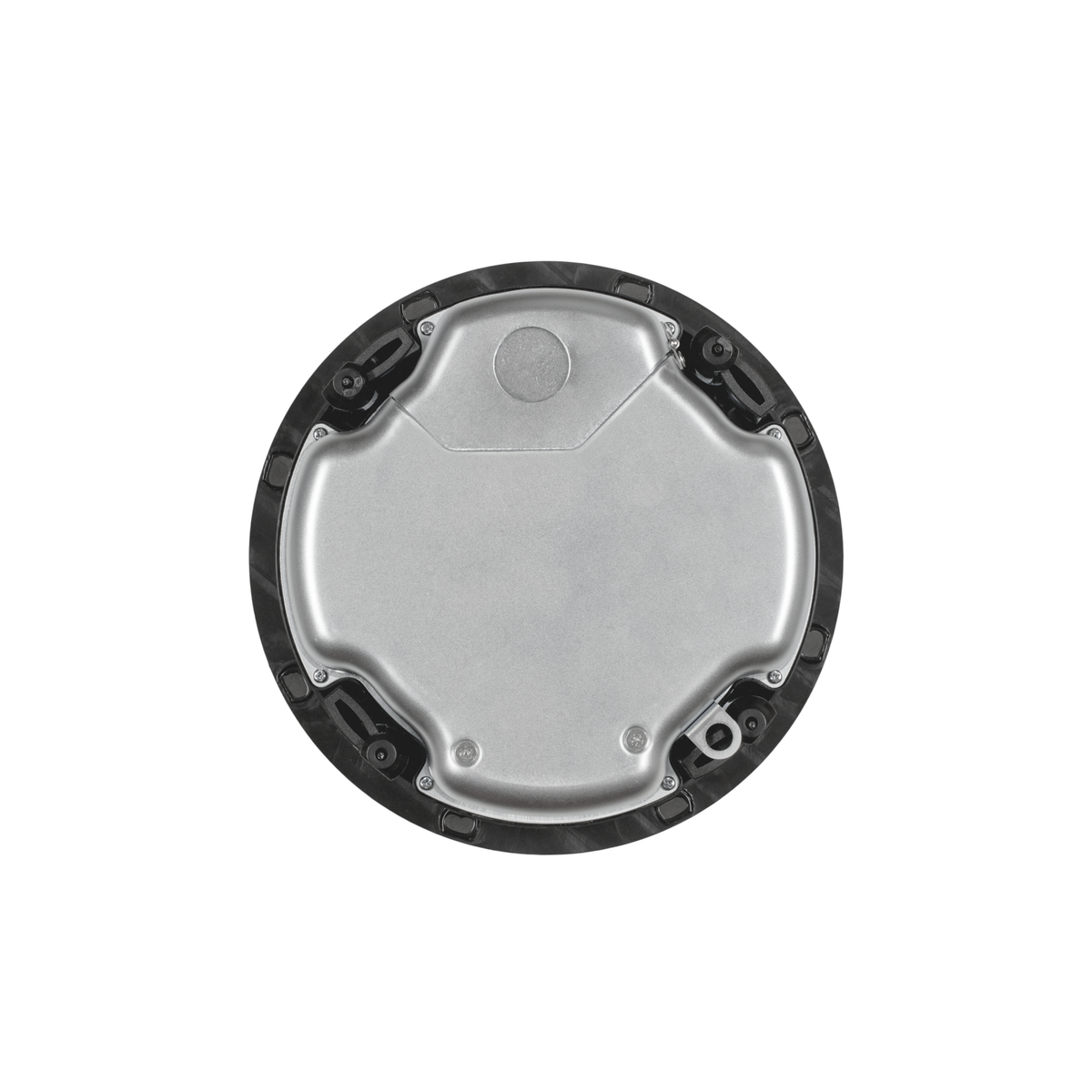

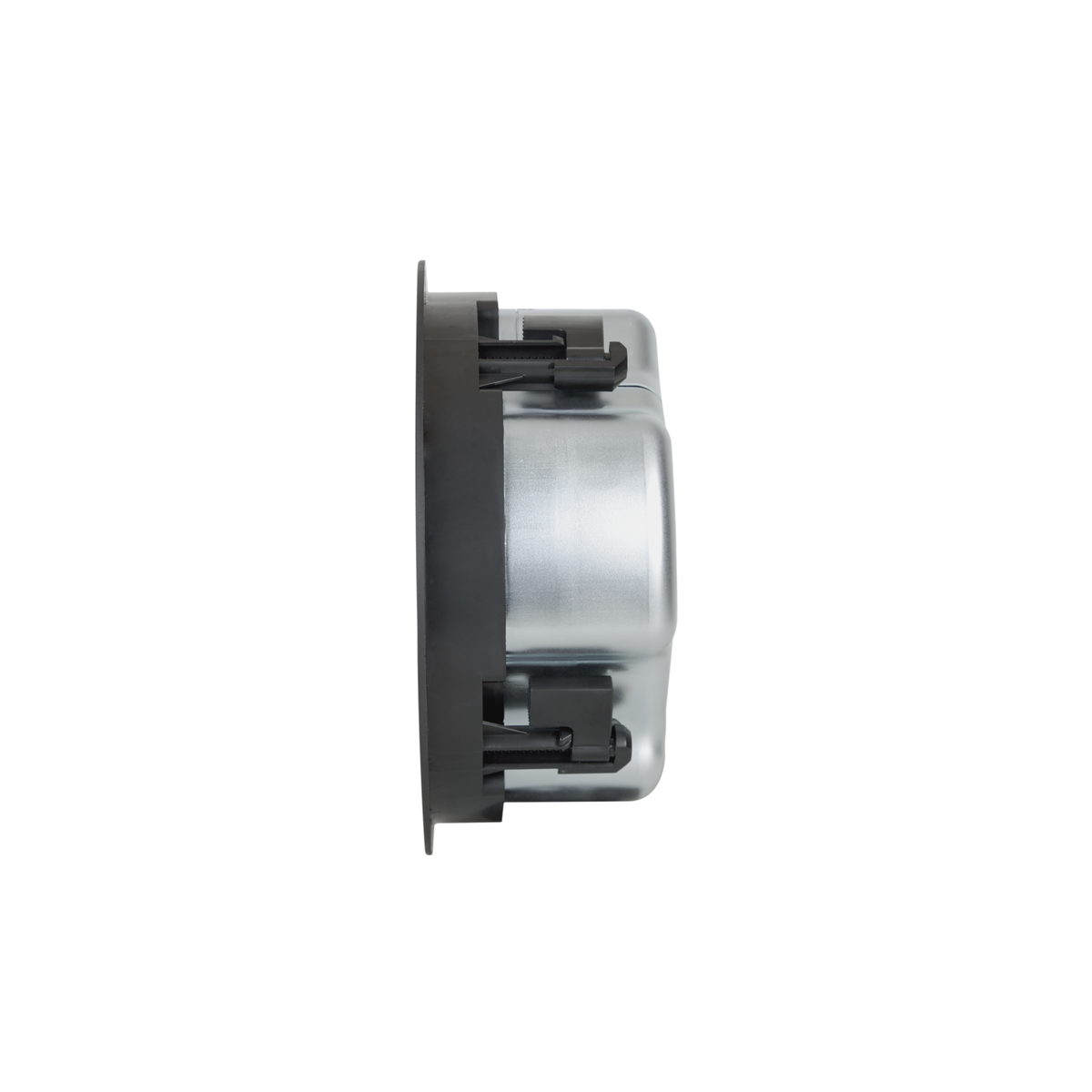

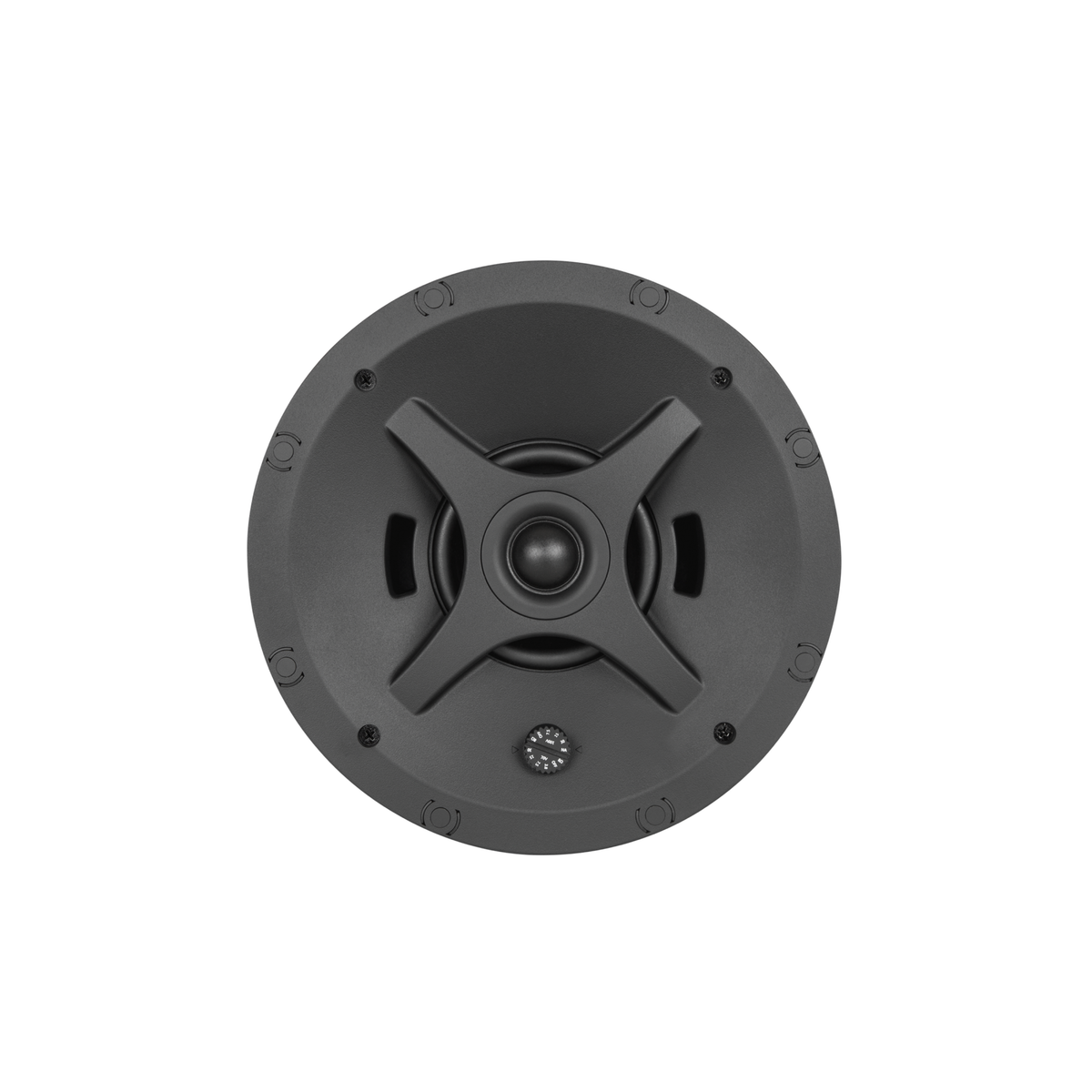

Sonance PS-C43RTLP Commercial Speaker
$0.00

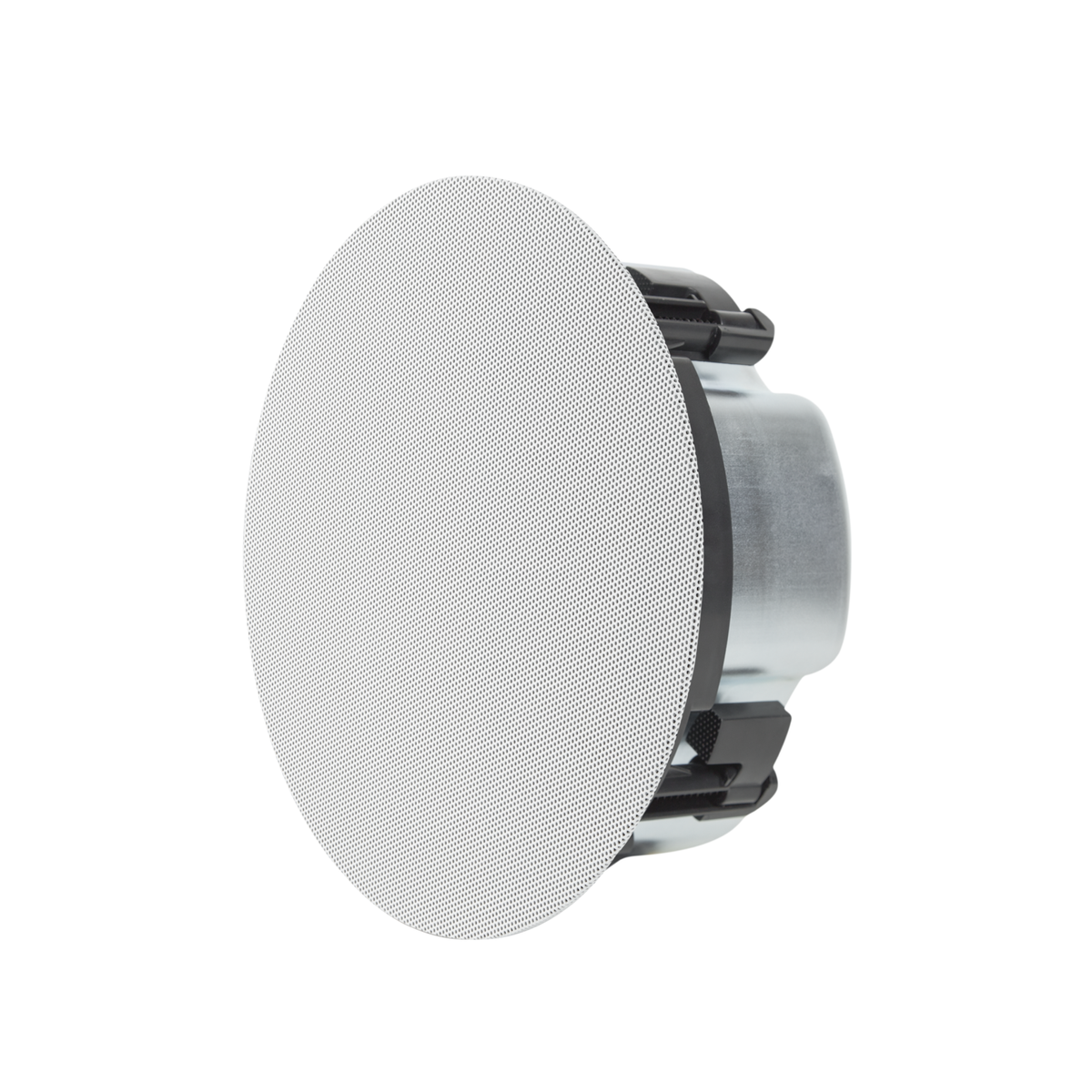

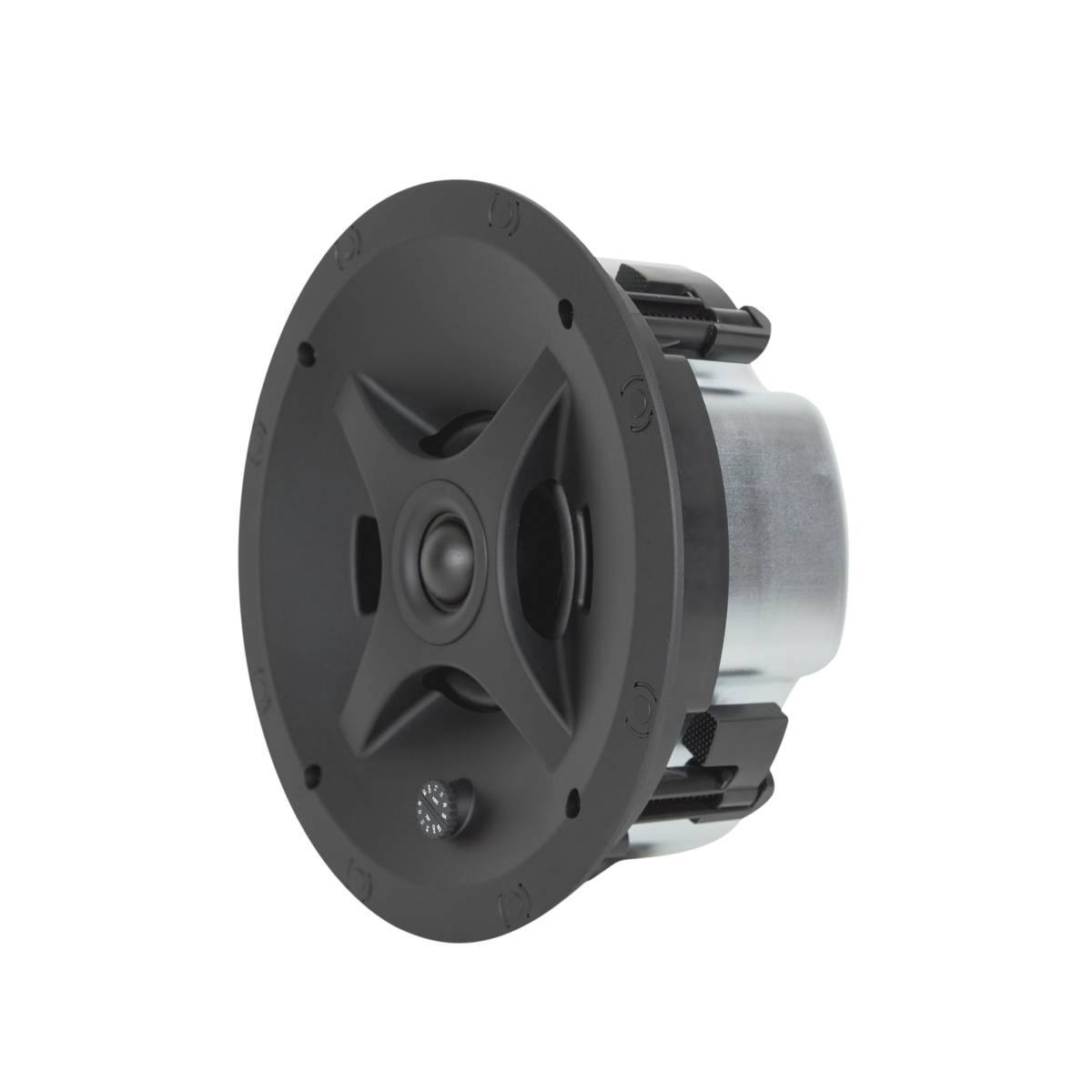

The Sonance PS-C43RTLP Low Profile In-Ceiling Speaker is designed for tight spaces, fitting beneath HVAC ducts or in 2'x4' stud bays. Its shallow 3.43" design features a magnetically secured bezel-less grille for easy painting. With a 4" woofer and pivoting 1" tweeter, it delivers exceptional audio performance.
Specifications
- HF Driver: 1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
- LF Driver: 4" (100mm) Polypropylene Cone, Butyl Rubber Surround
- Frequency Response (+/- 10db): 57Hz - 25kHz
- Frequency Response (+/- 3db): 75Hz - 20kHz
- Power Handling (RMS): 60 watts program, 30 watts pink noise
- Sensitivity: 87dB (2.83V/1m)
- Rated Maximum SPL: 105dB @ 1 meter (3.3 feet), 110dB peak
- Nominal Impedance (Ohms): 8 ohms
- Transformer Taps: 70 V / 100 V: 30W, 15W and 7.5W
- 70 V: 3.8W: Dimensions (Diameter x D)
- 9.13" x 3.43" (231.9mm x 87.12mm): Cut-Out Dimensions (Diameter)
- 8.25" (209.55mm): Knockout
- One, Side mounted 0.75" (19mm): Weight
- 6.00 lbs. (2.72kg): Grille
- One Piece Paintable Grille with Magnetic Retention: Input Connector
- Four pin, Euroblock with loop output connections: Certifications
- UL 1480, UL 2043, NFPA 90A, NFPA 70: Suspension Points
- One, on top surface: Maximum SPL (Peak)
- 110dB peak: Architectural Specifications
