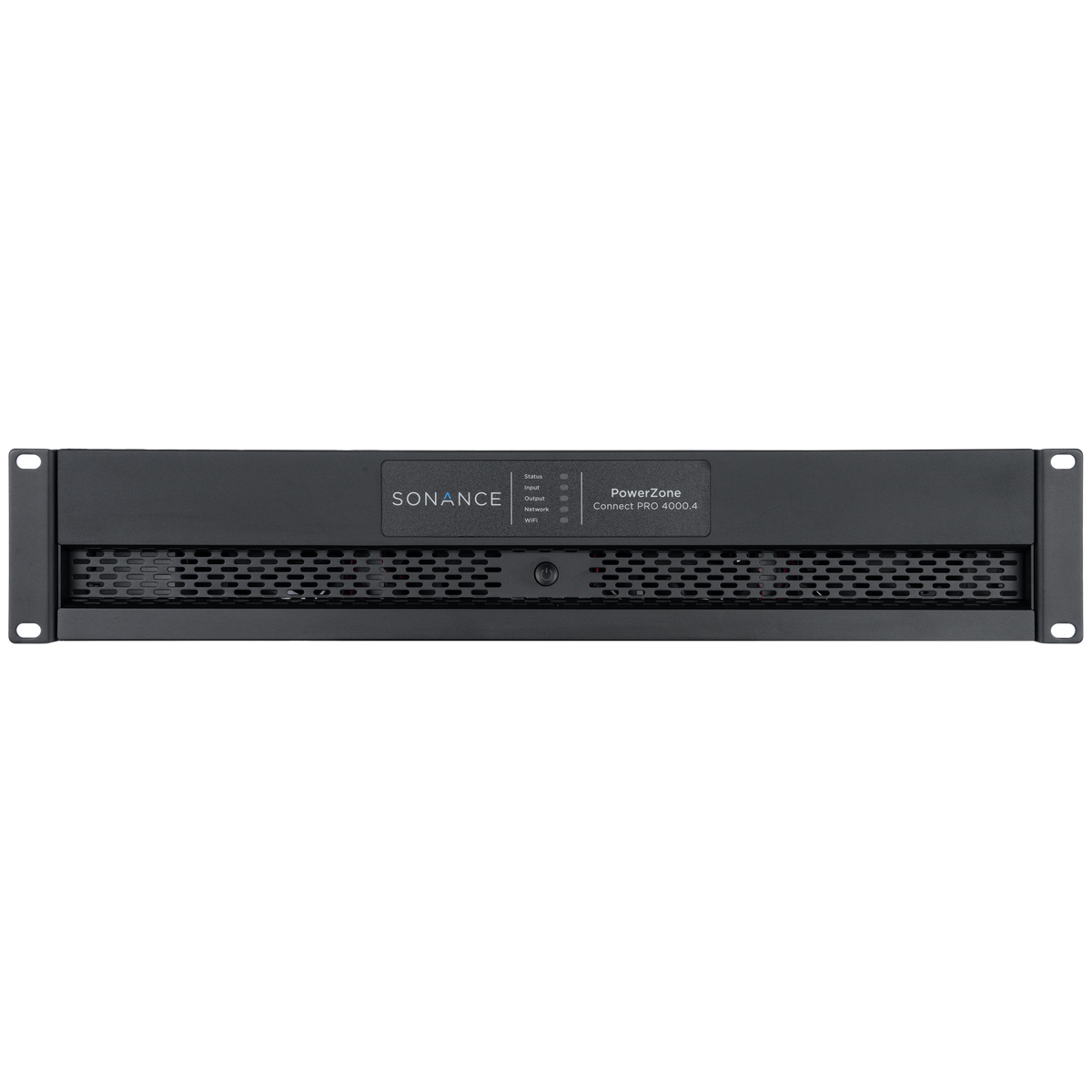

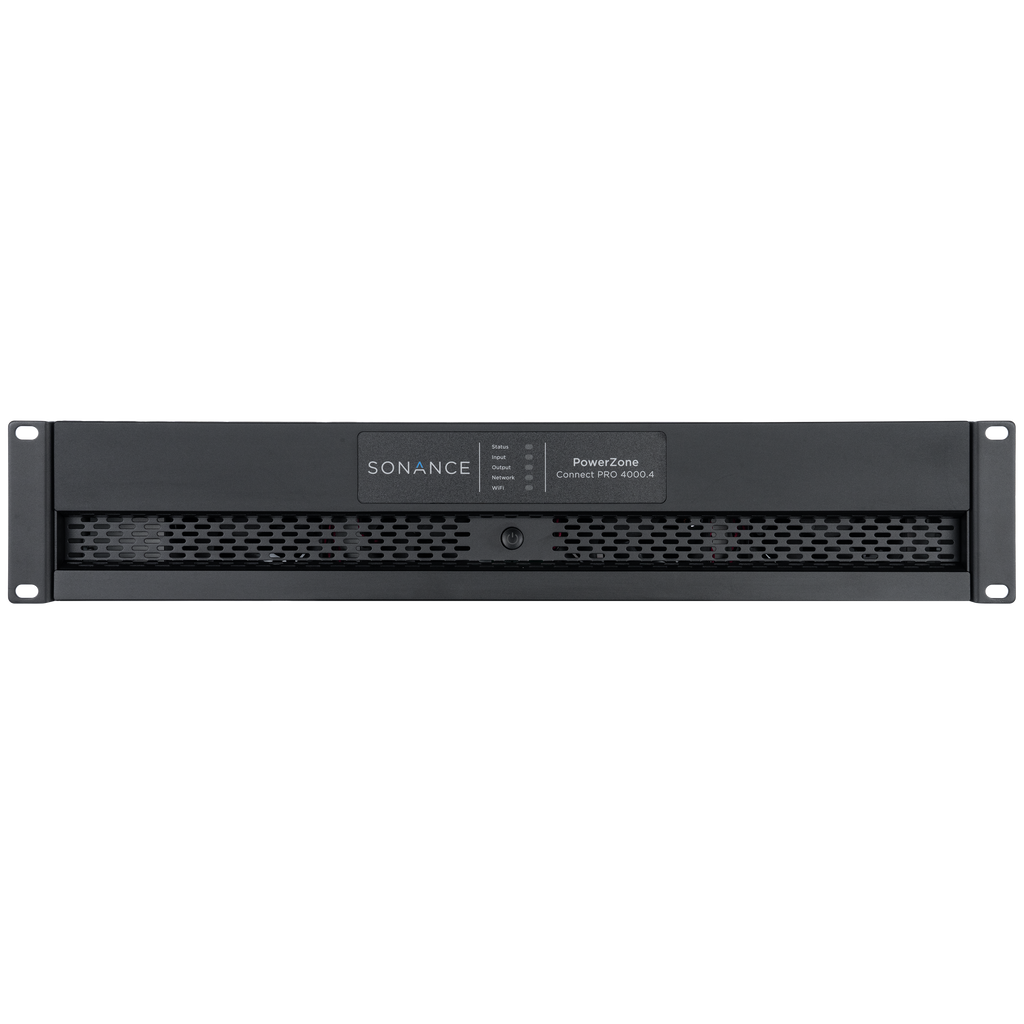

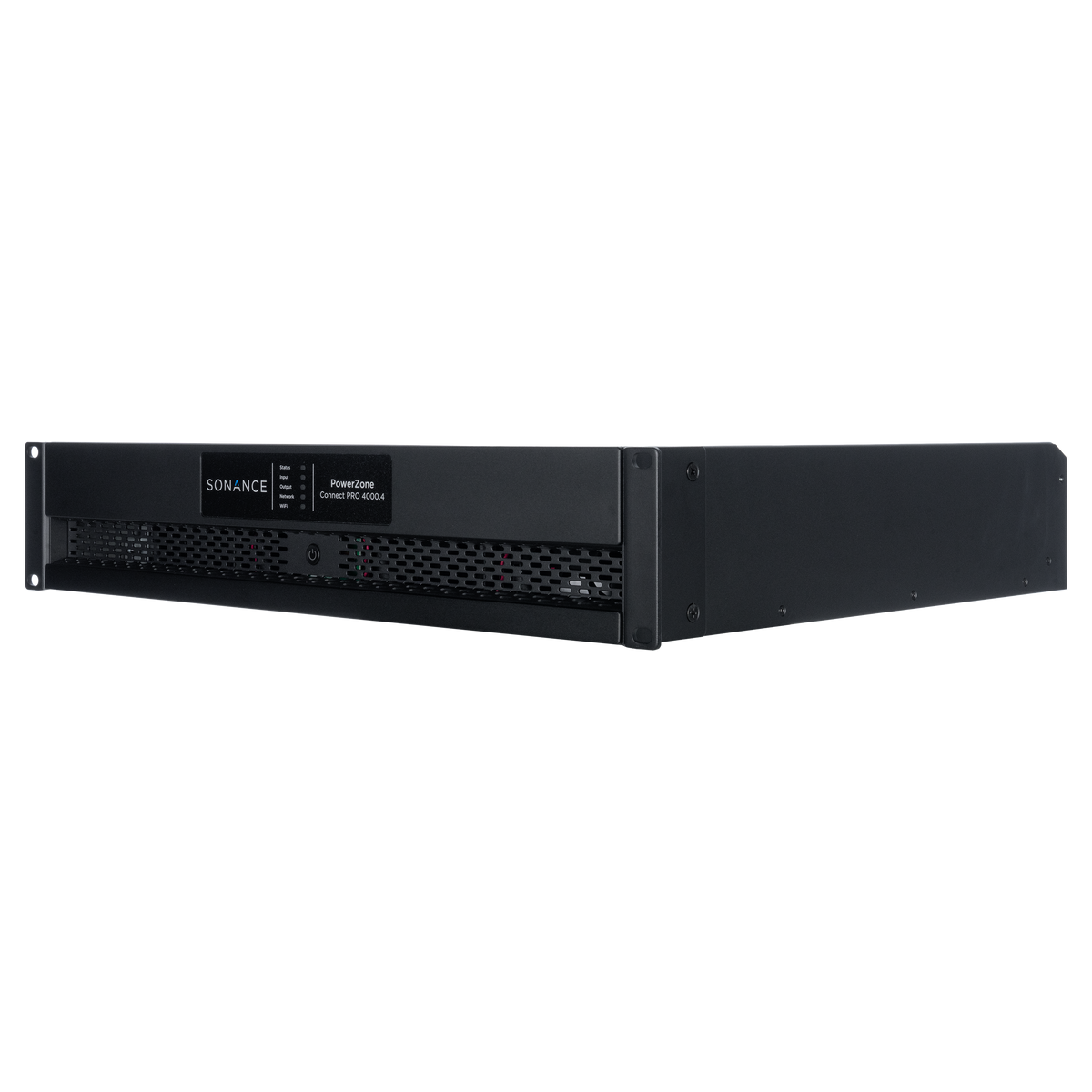

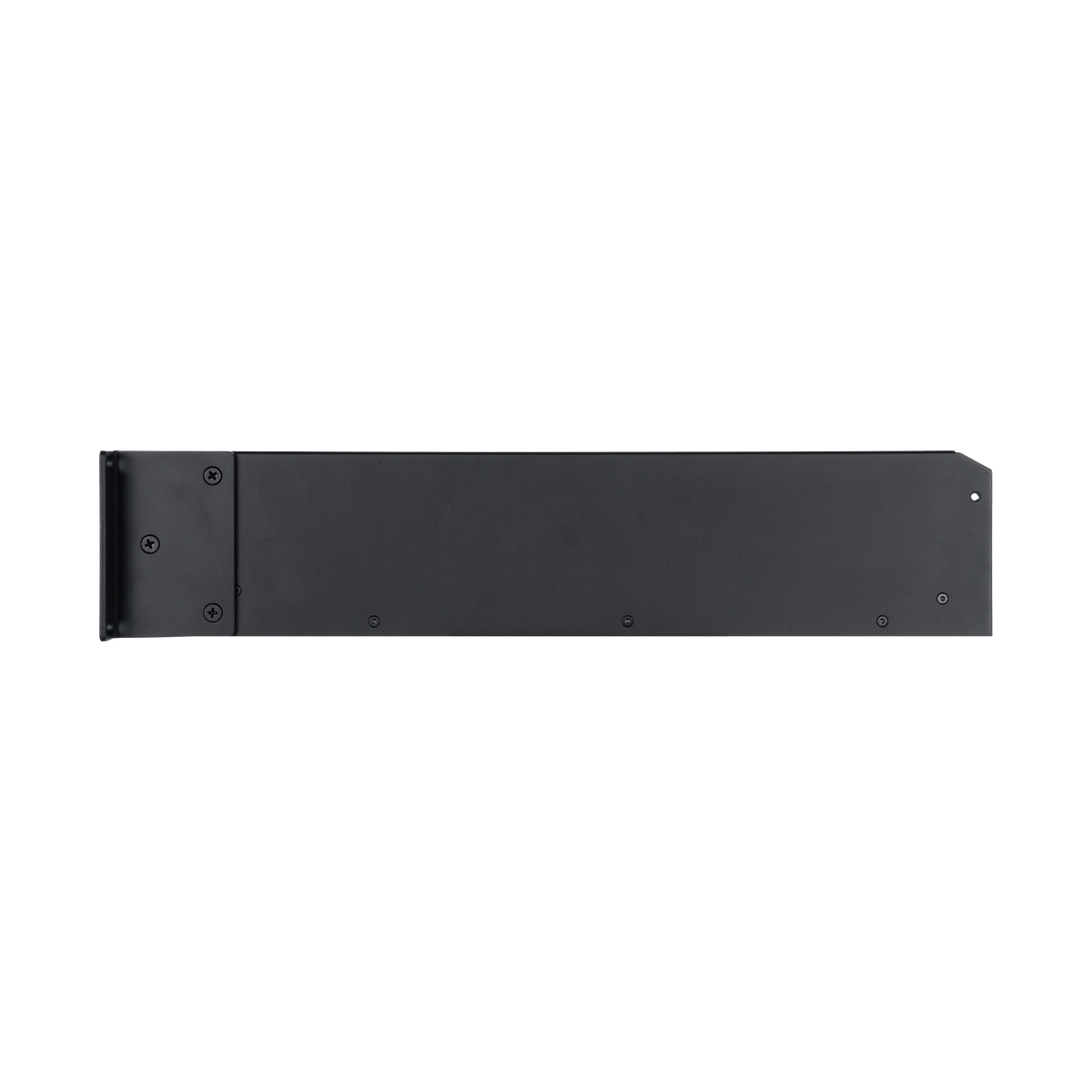

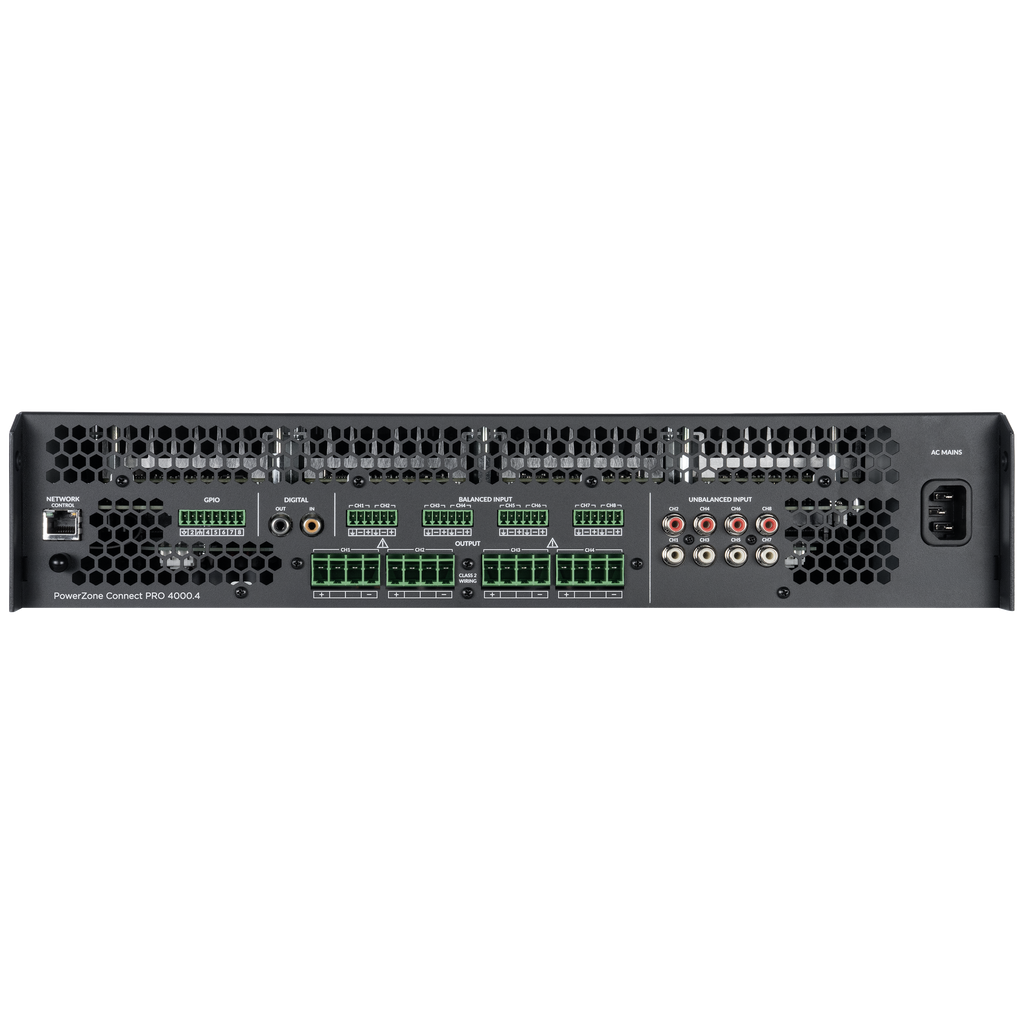

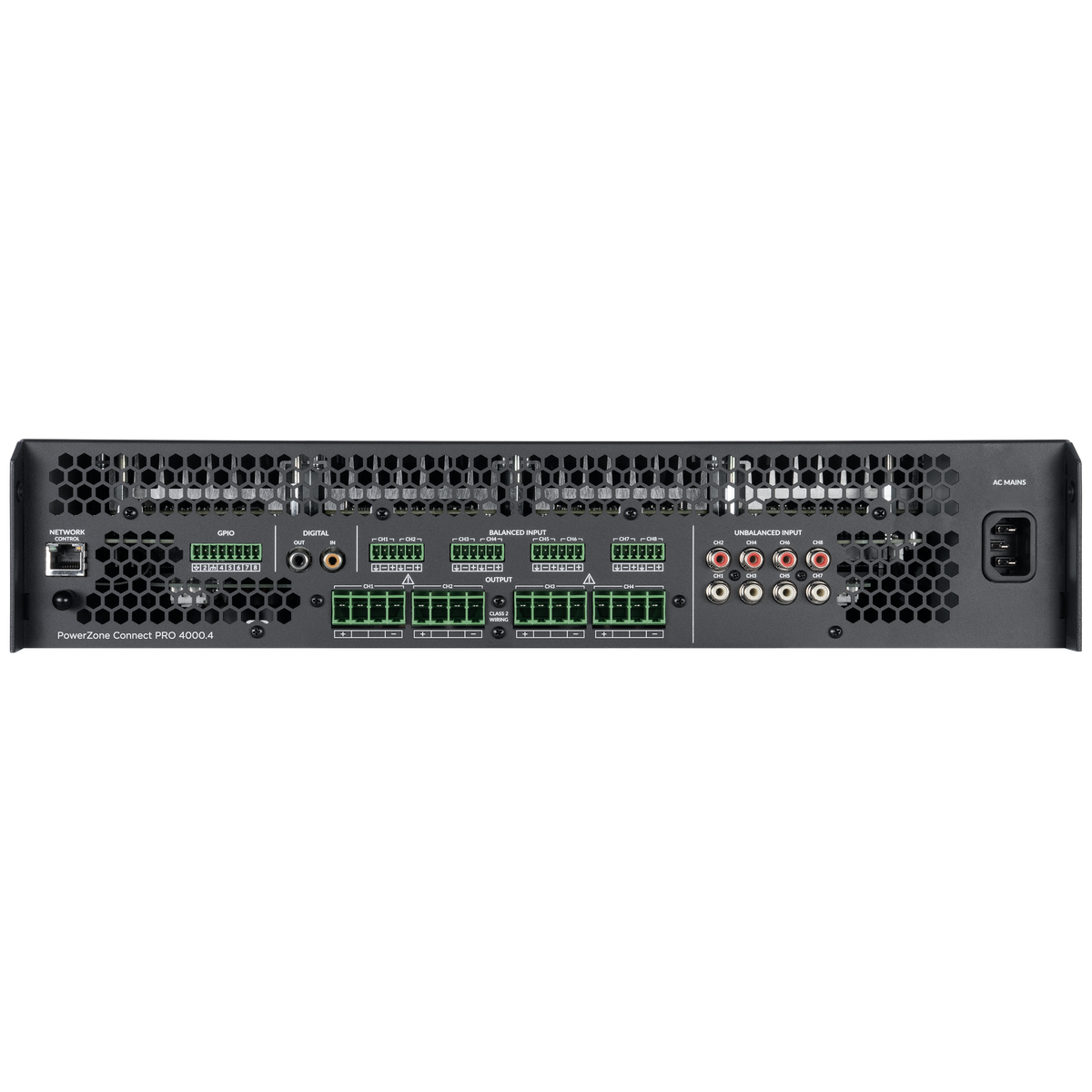

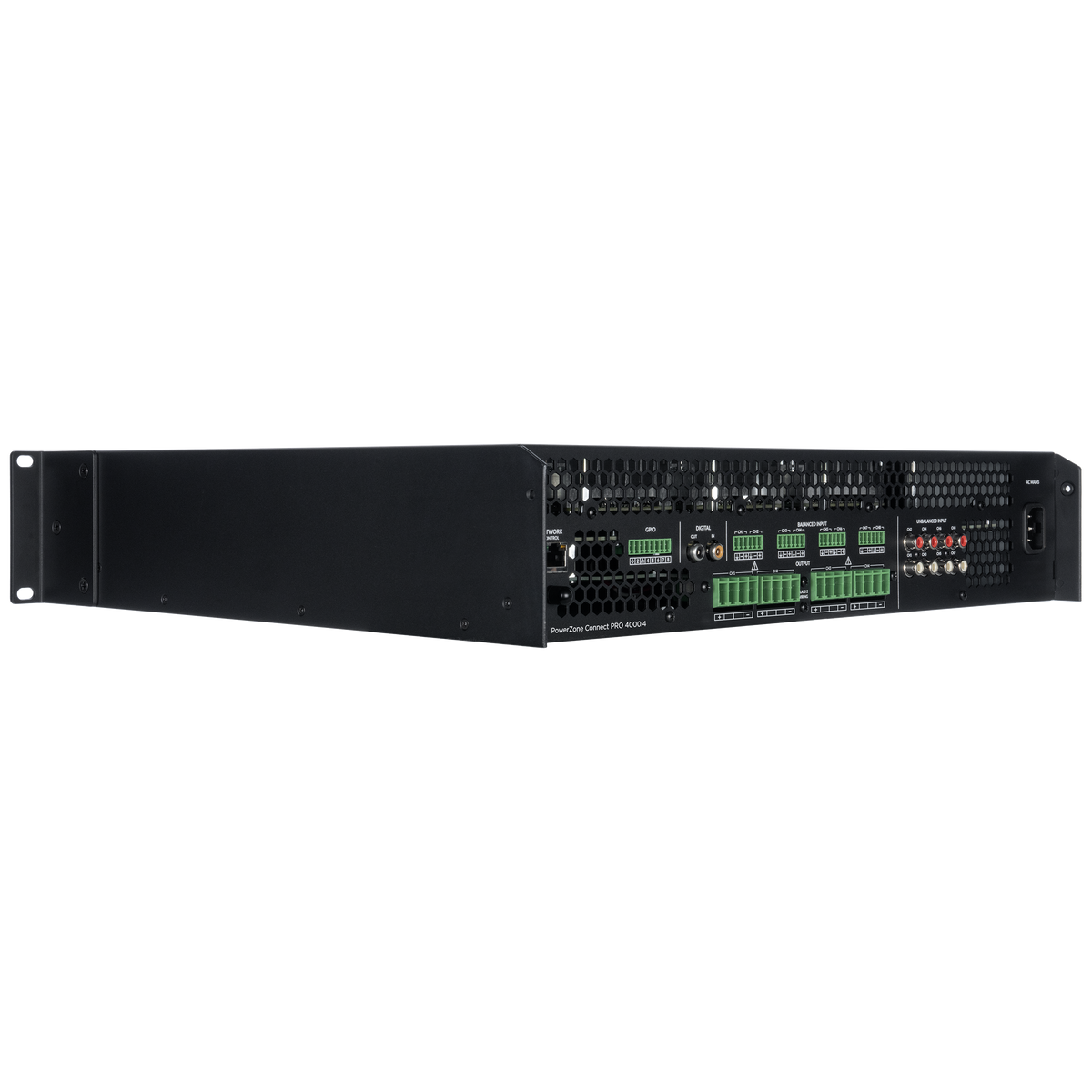

Sonance PowerZone Connect PRO 4000.4 DSP Power Amplifier
$0.00
Overview
Sonance PowerZone Connect PRO 4000.4 is a 4000 W DSP-enabled Class-D power amplifier for installed audio systems. Its 2U format combines amplification with built-in PowerZone Control processing.
Key Features
- Full-rack, 2U form factor
- 4 x 1000 W at 70V/100V (4000 W total system power)
- Purpose-built for 70V/100V distributed audio with selectable Hi-Z/Lo-Z operation
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Preloaded Sonance loudspeaker presets for optimized performance
- Control the system from the Wall-M controller or Sonance iOS app
- Configurable GPIO
- Control drivers and open API support for third-party control systems
- UL Listed audio equipment
- ErP compliant
- Sonance 5-year warranty
Technical Specifications
| SKU | 93805 (PowerZone Connect PRO 4000.4), 93817 (PowerZone Connect PRO 4000.4 UNI) |
|---|---|
| Dimensions (WxHxD) | 17.3" x 3.5" x 16.3" (439.42mm x 88.9mm x 414.02mm) |
| Weight | 25.6 lbs. (11.61kg) |
| Channel Configuration | Hi-Z: 4 x 1000W @70/100V Lo-Z: 4 x 1000W @4/8Ω |
| Total System Power | 4000 W |
| Output Power @ 4 ohms | 4 x 1000 W |
| Output Power @ 8 ohms | 4 x 1000 W |
| Output Power @ 70V | 4 x 1000 W |
| Output Power @ 100V | 4 x 1000 W |
| Power Consumption | 1400 W |
| Built-in DSP | Yes |
| Dante Compatibility | No |
| Rack Units | 2U |
Installation and Documentation
For professional installation. Consult the official installation manual for wiring, load configuration and safety requirements.
