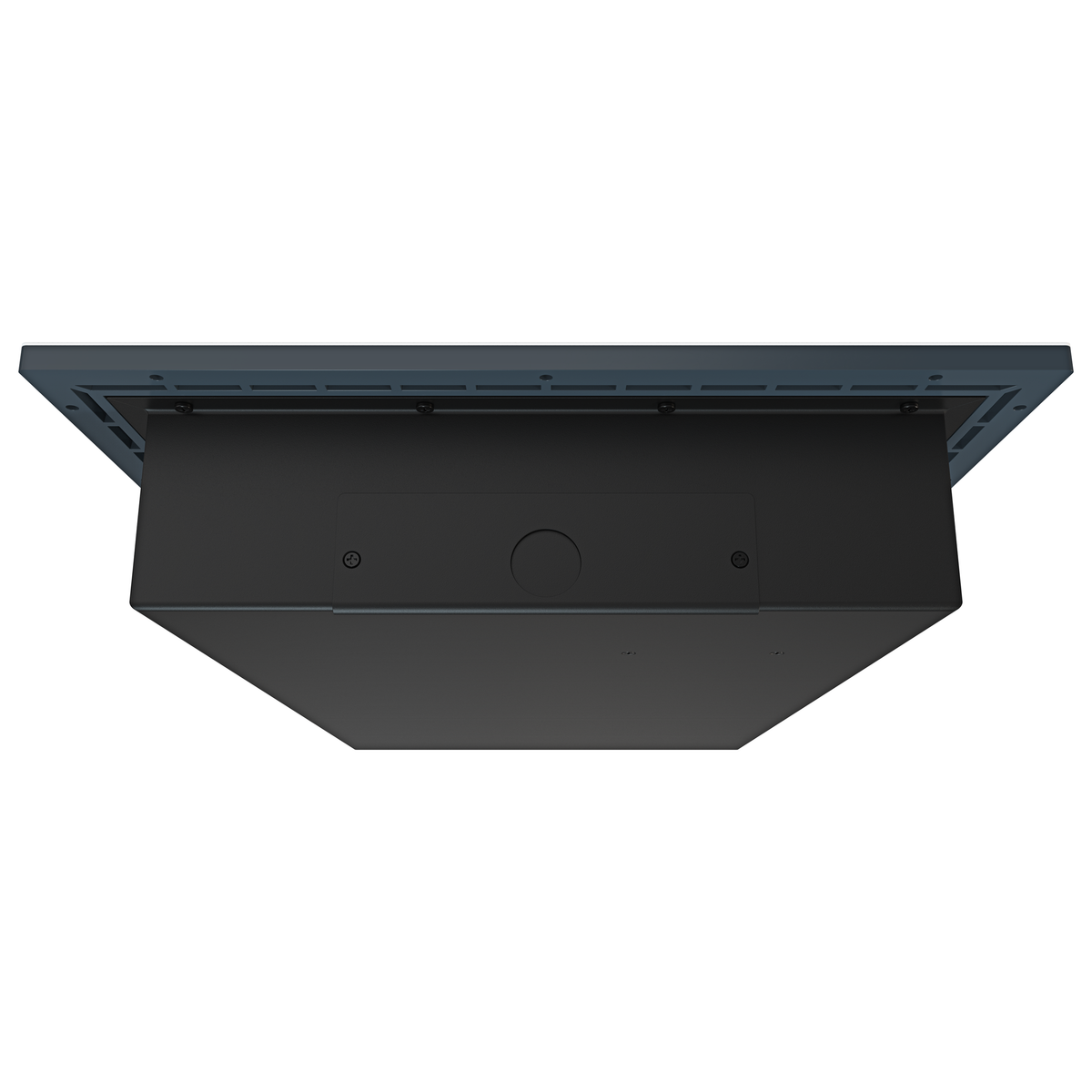

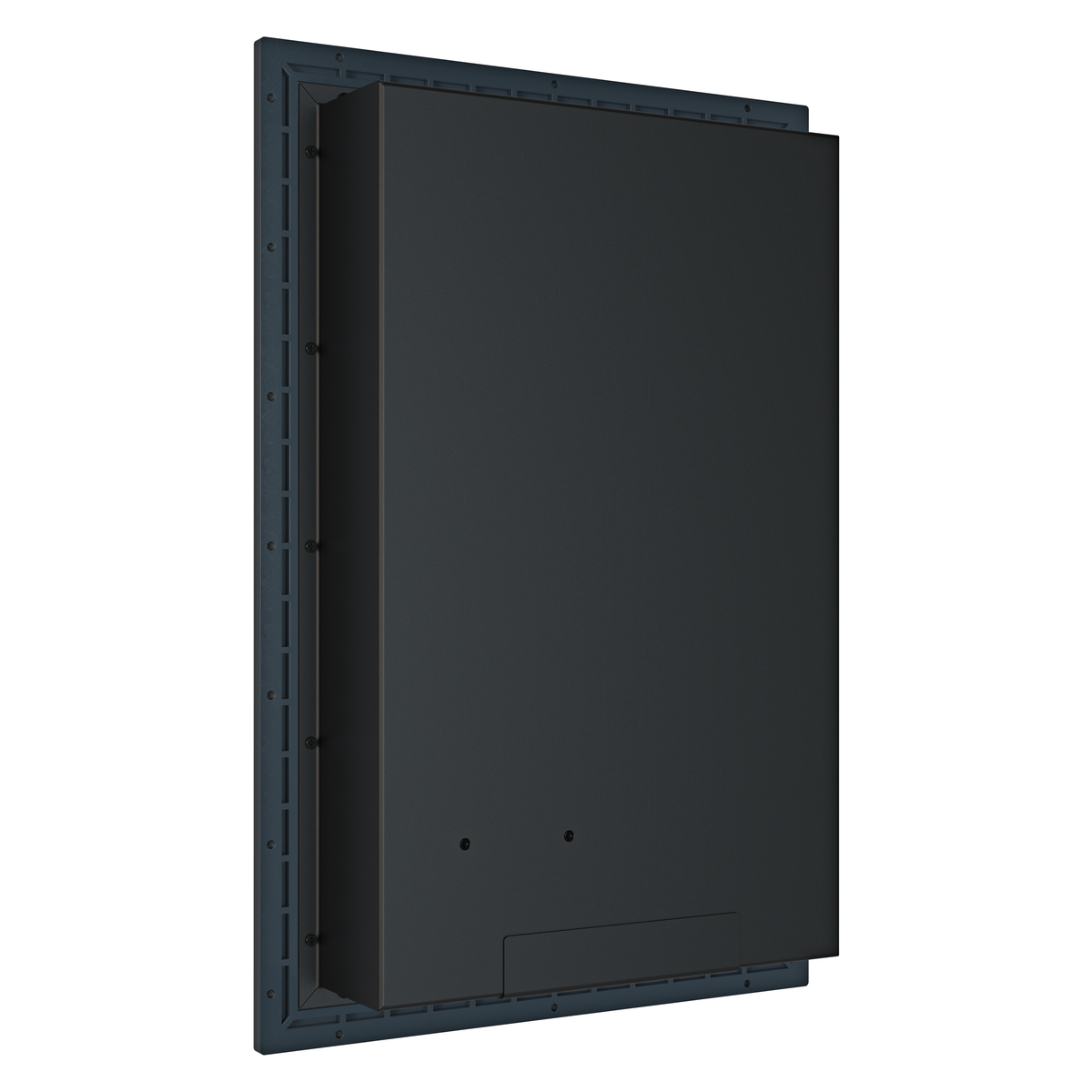

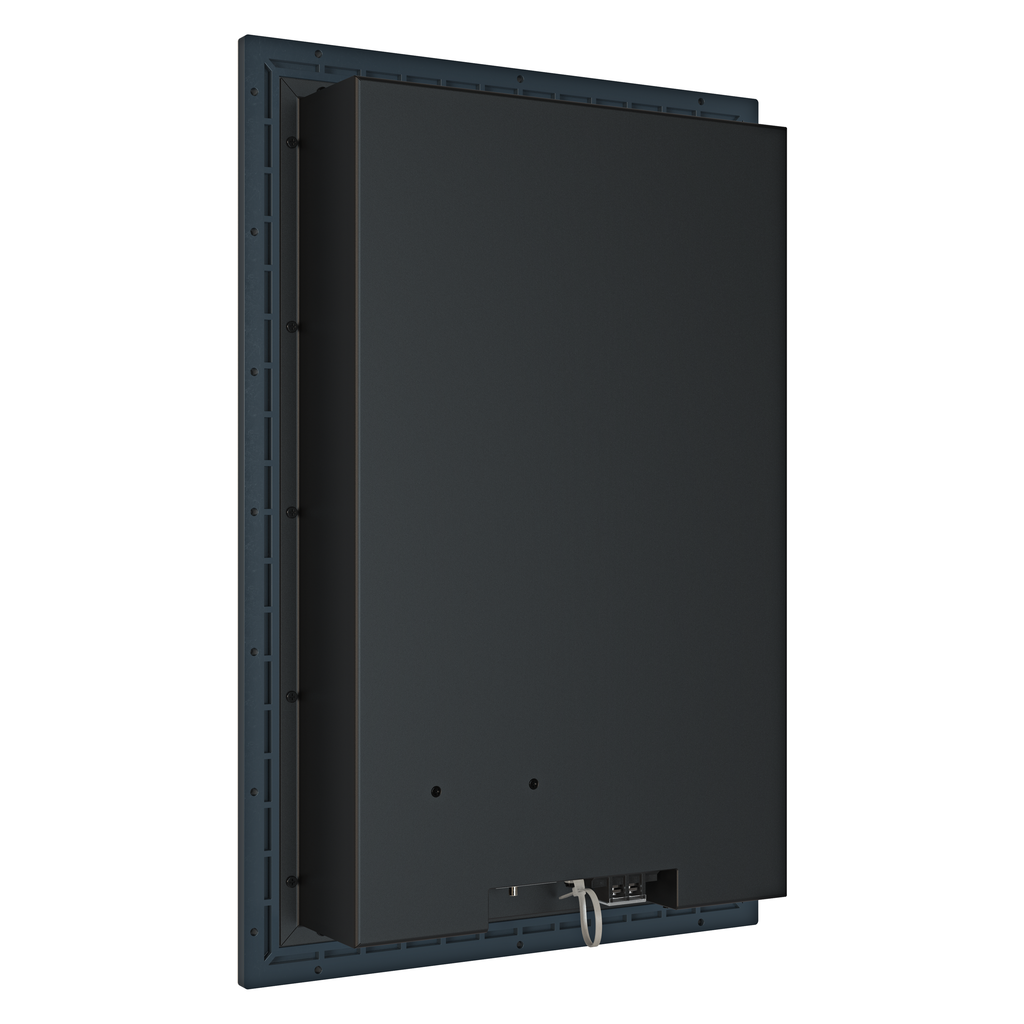

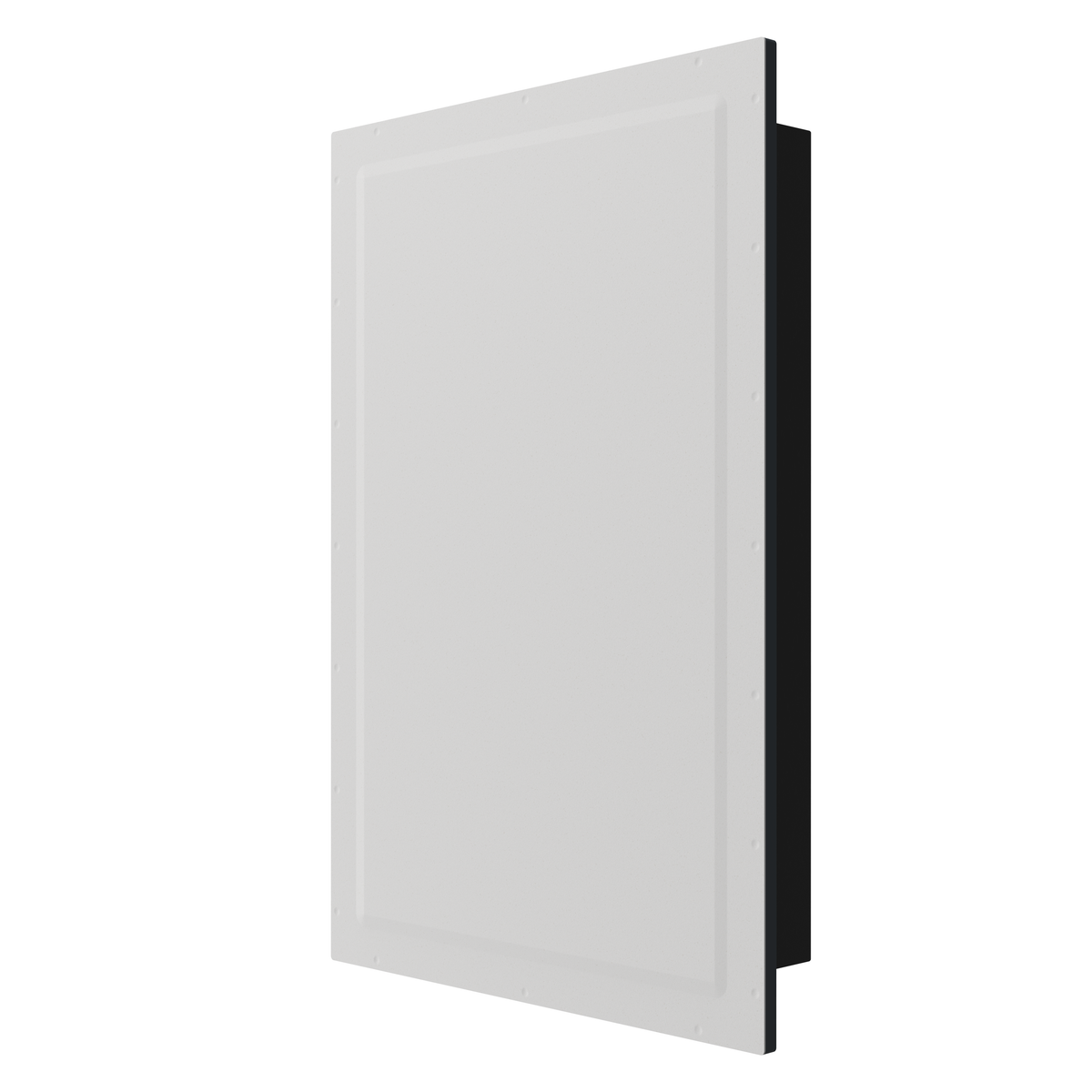

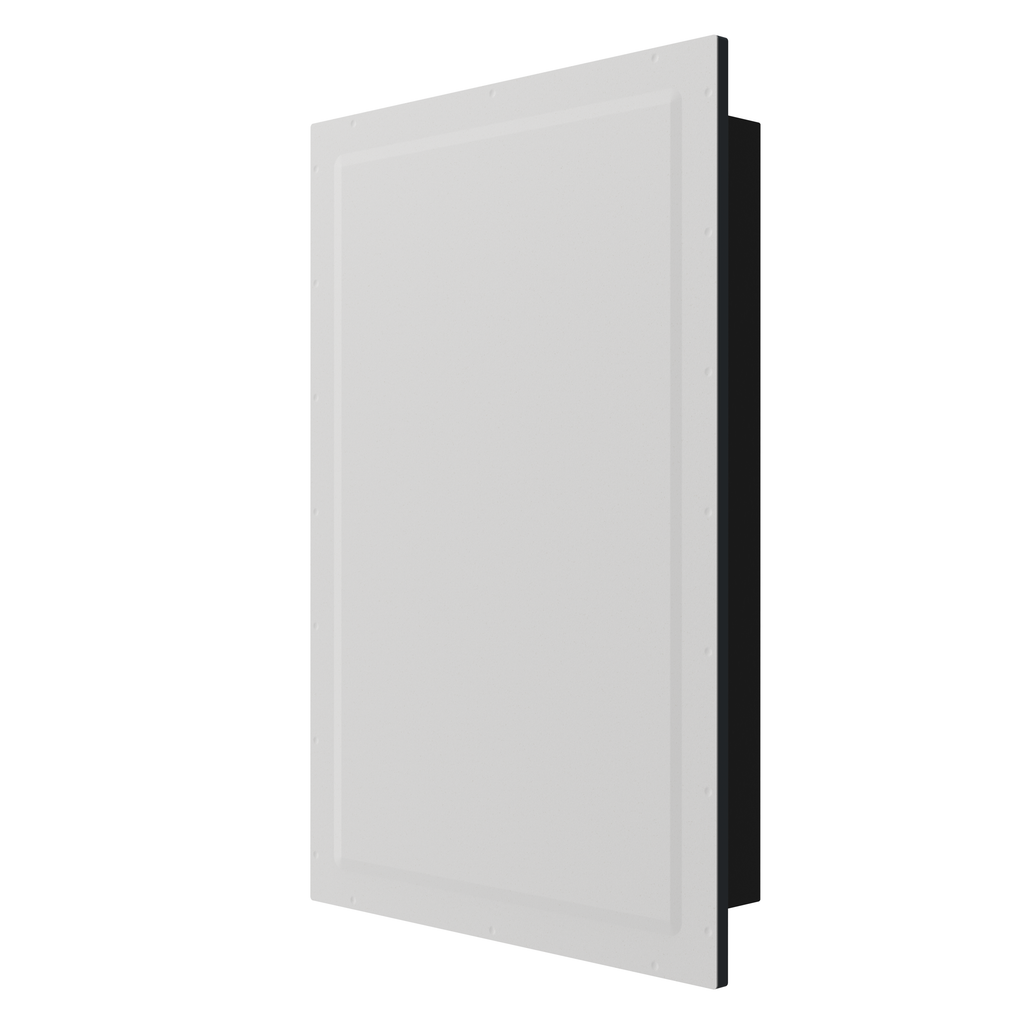

Sonance IS8T Invisible Speaker
$0.00
Invisible Speakers represent the peak of Sonance’s Designed to Disappear strategy. High frequencies are delivered using Sonance Motion Flex Technology, which features a Wave Flex Drive Unit with a bending wave diaphragm and a 1.75-inch (44mm) voice coil. Low frequencies are produced by an Air Flex Woofer that uses an air pulse diaphragm powered by an 8-inch (203mm) carbon fiber woofer.
Specifications
- Wave Flex Drive Unit: 29in^2 (188cm^2) bending wave diaphragm, 1.75in (44mm) voice coil
- Air Flex Woofer: 191in^2 (1234cm^2) air pulse diaphragm, 8in (203mm) carbon fiber woofer
- Frequency Response (+/- 3db): 40Hz - 30kHz
- Power Handling (RMS): 160 watts RMS
- Sensitivity: 86dB (2.83V/1m)
- Nominal Impedance (Ohms): 4 ohms
- Dispersion: 170 degree hemispherical up to 10kHz
- Transformer Taps: 70 V / 100 V: 60W, 30W and 15W
- 70 V: 7.5W: Dimensions (WxHxD)
- 16.1" x 24.13" x 3.86" (408.94mm x 612.9mm x 98.04mm): Mounting Depth
- 3.39" (86.11mm): Weight
- 25.24 lbs. (11.45kg): Certifications
- UL2043, UL1480: Attachment

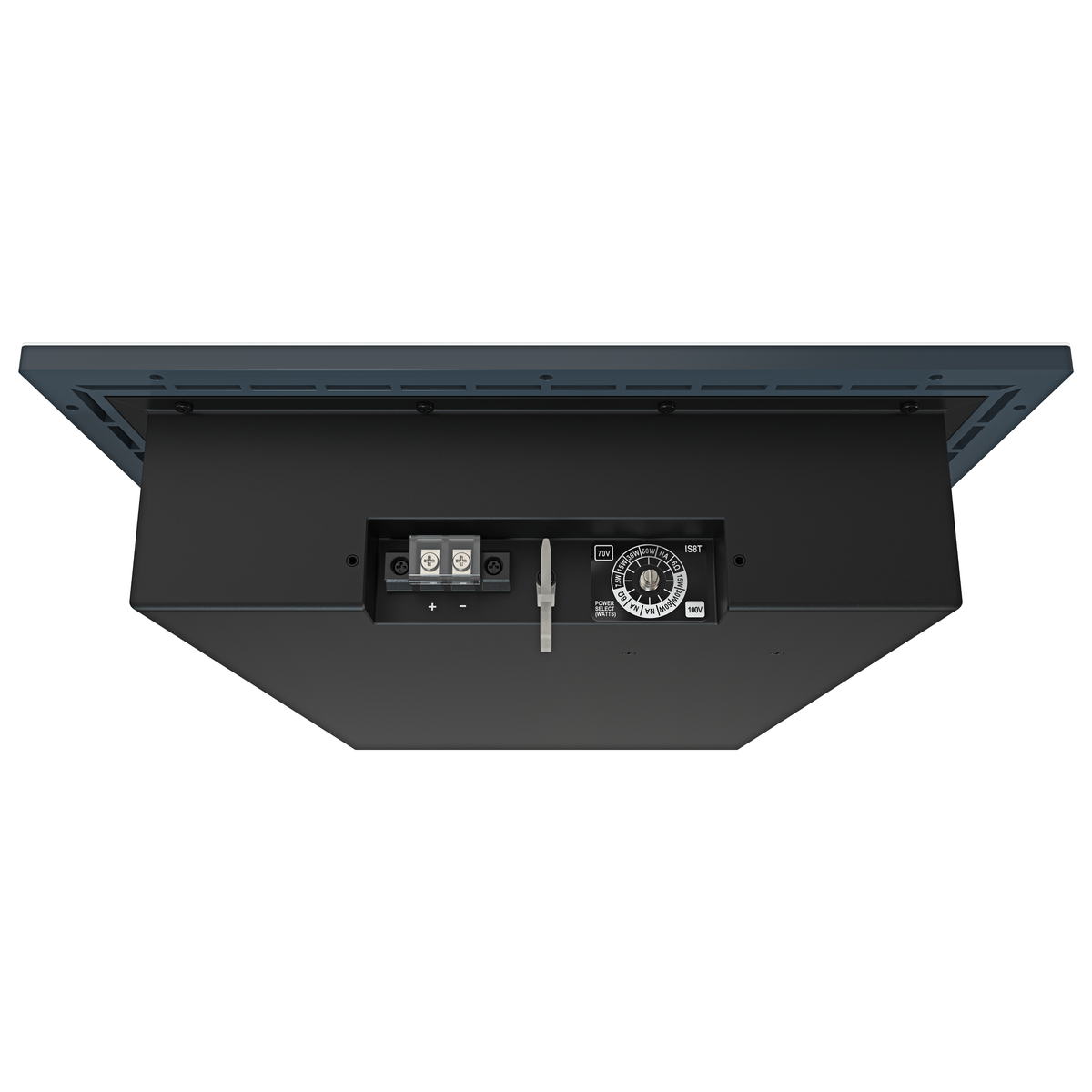

- Screw Terminals with strain relief: Overload Protection
- Two independent self-resetting poly switches: Architectural Specifications
- The loudspeaker shall be of the two-way type comprising a single cabinet that is designed to inst...: Dimensional Drawings
