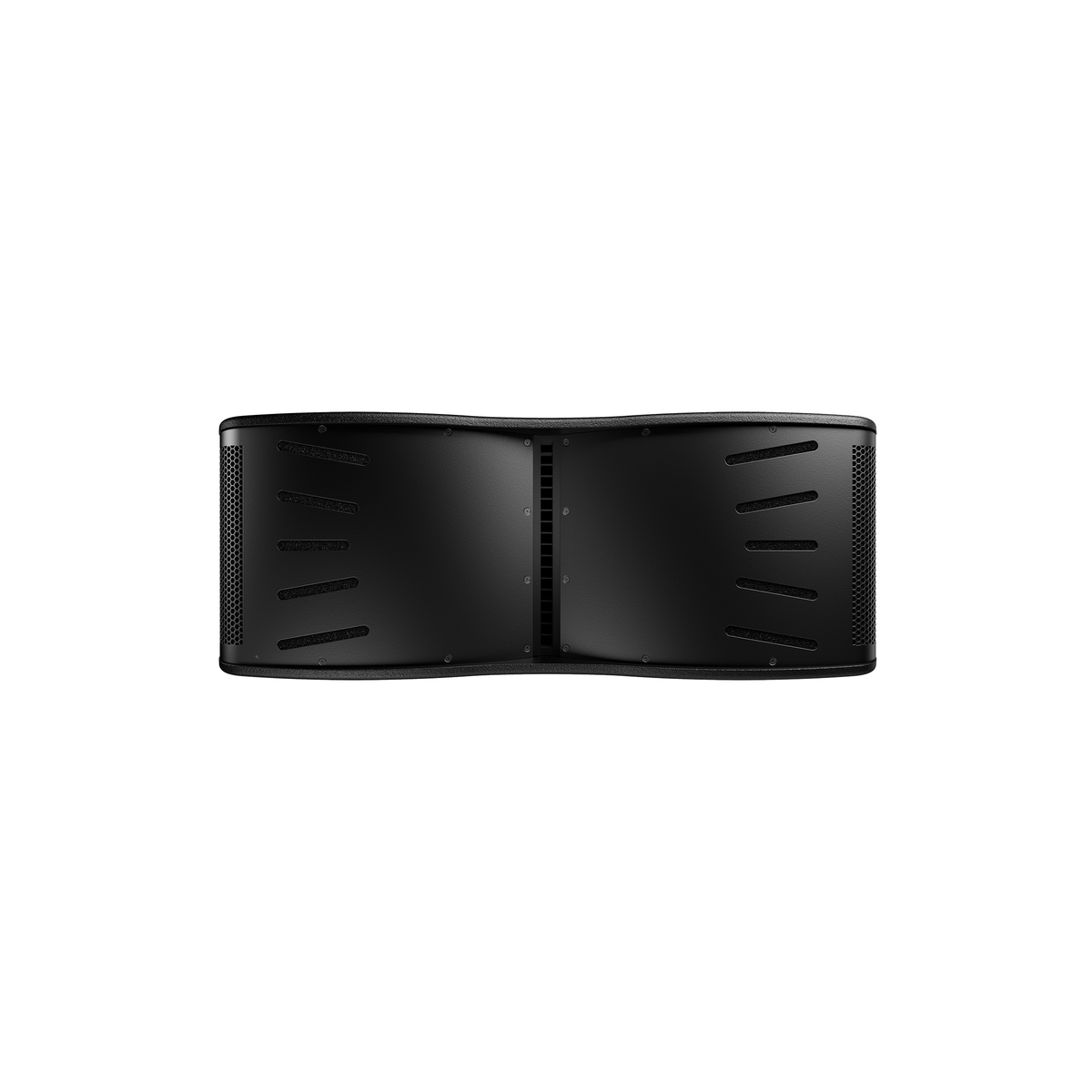

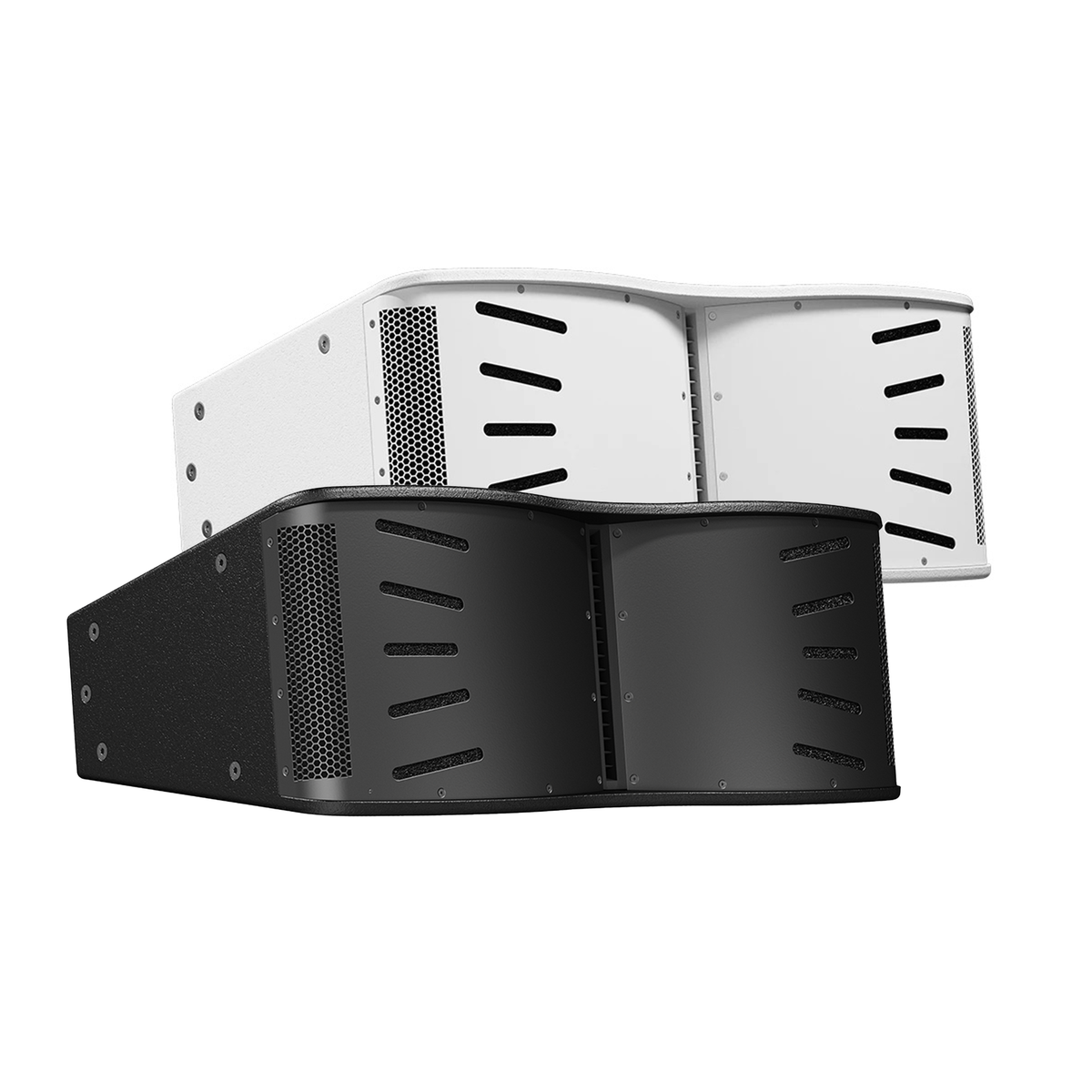

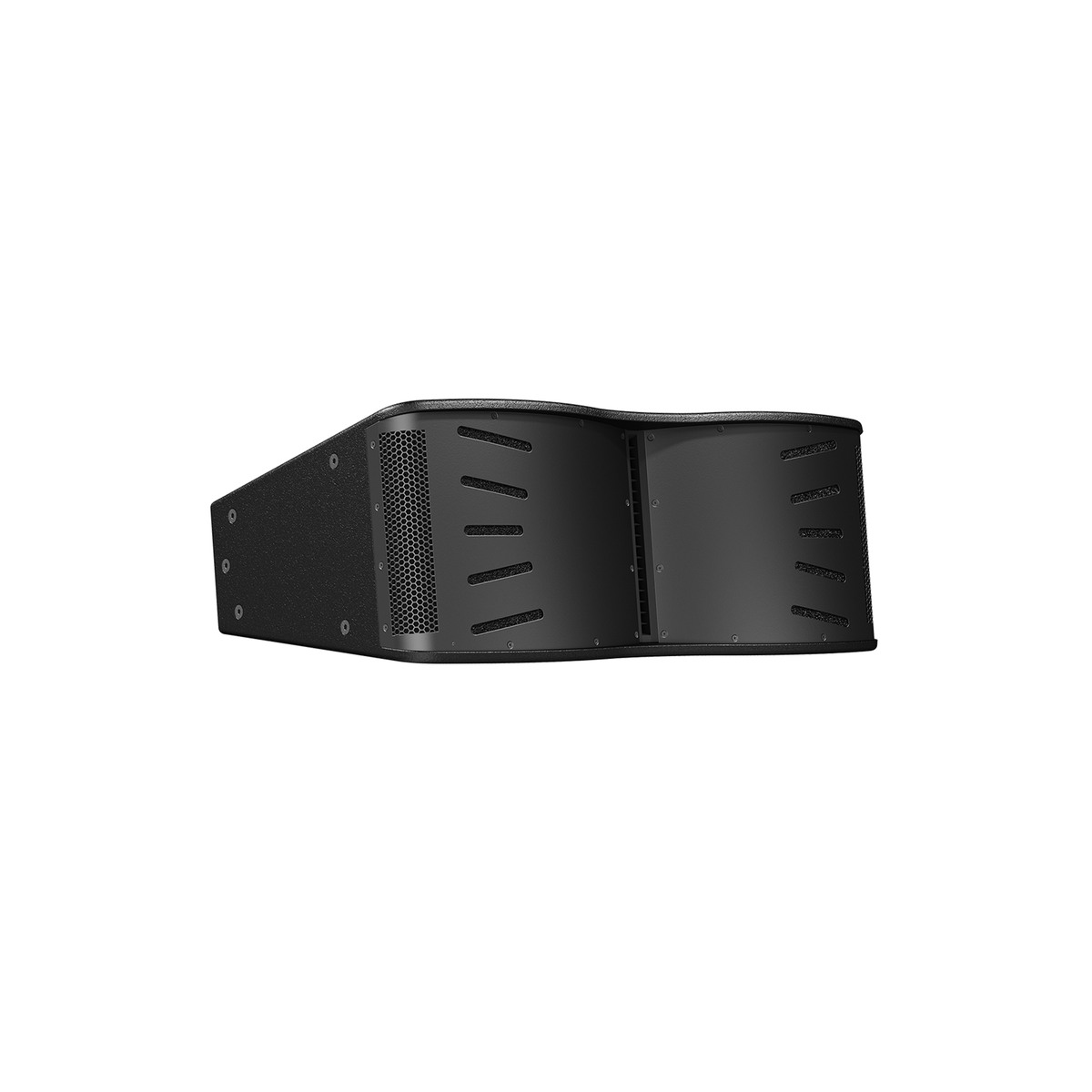

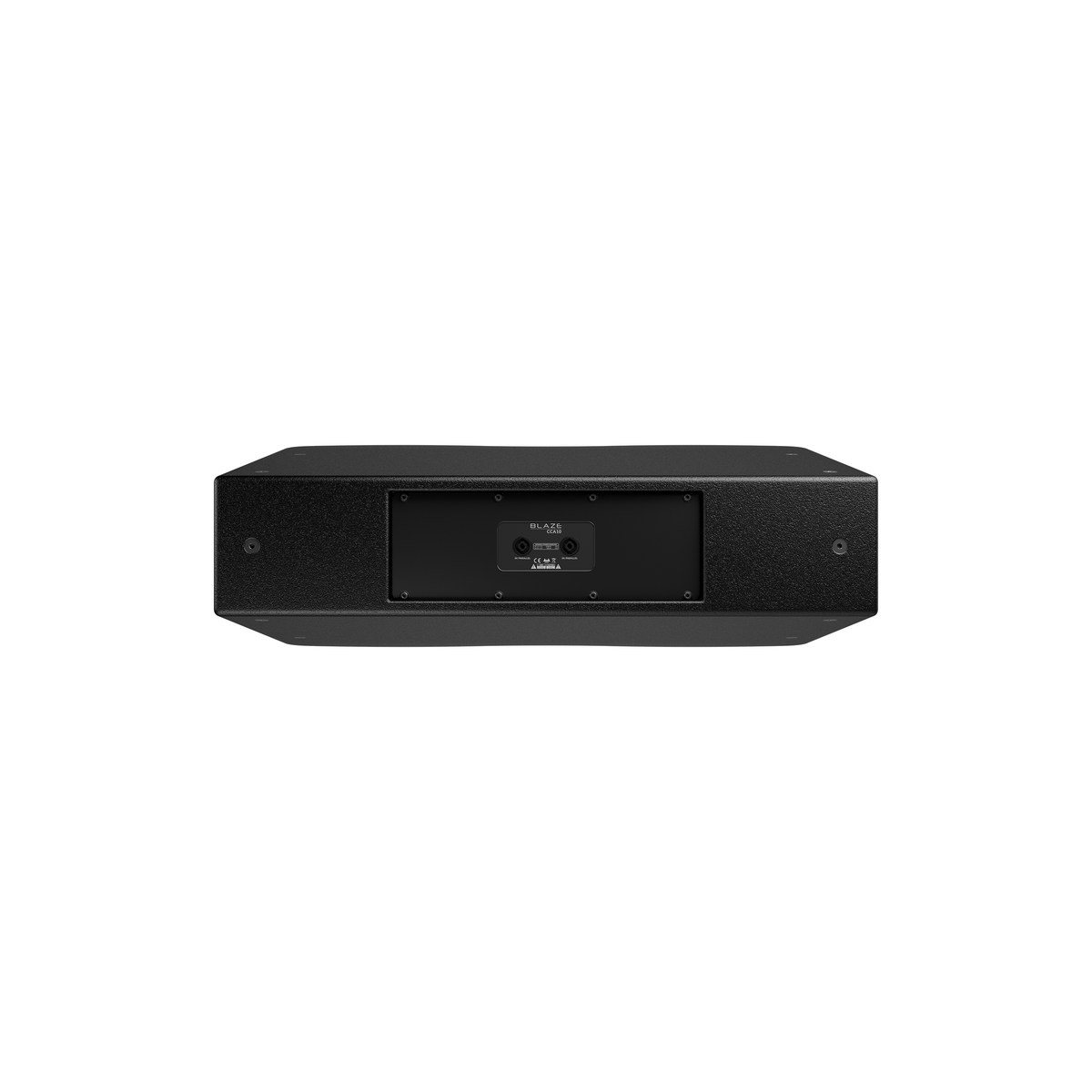

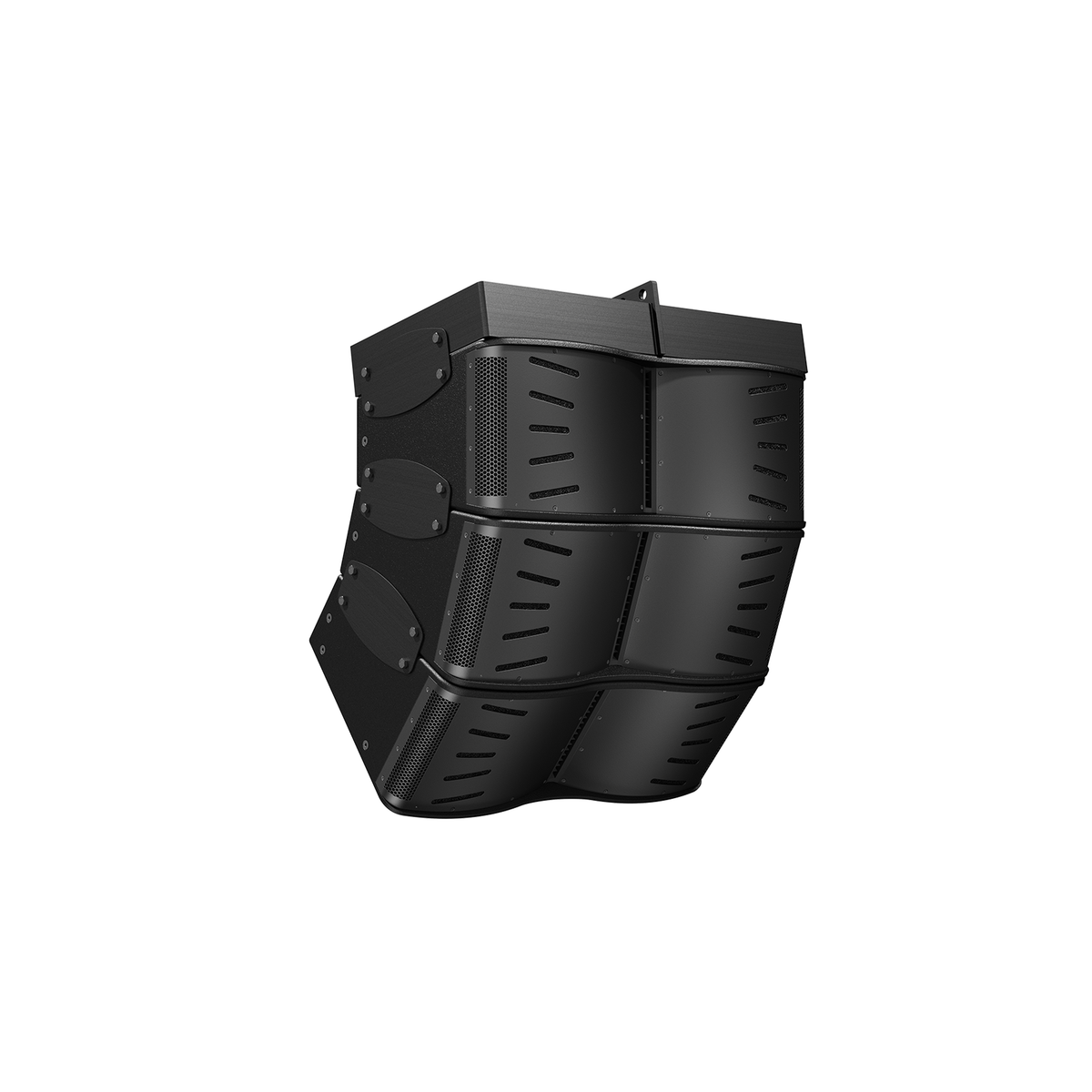

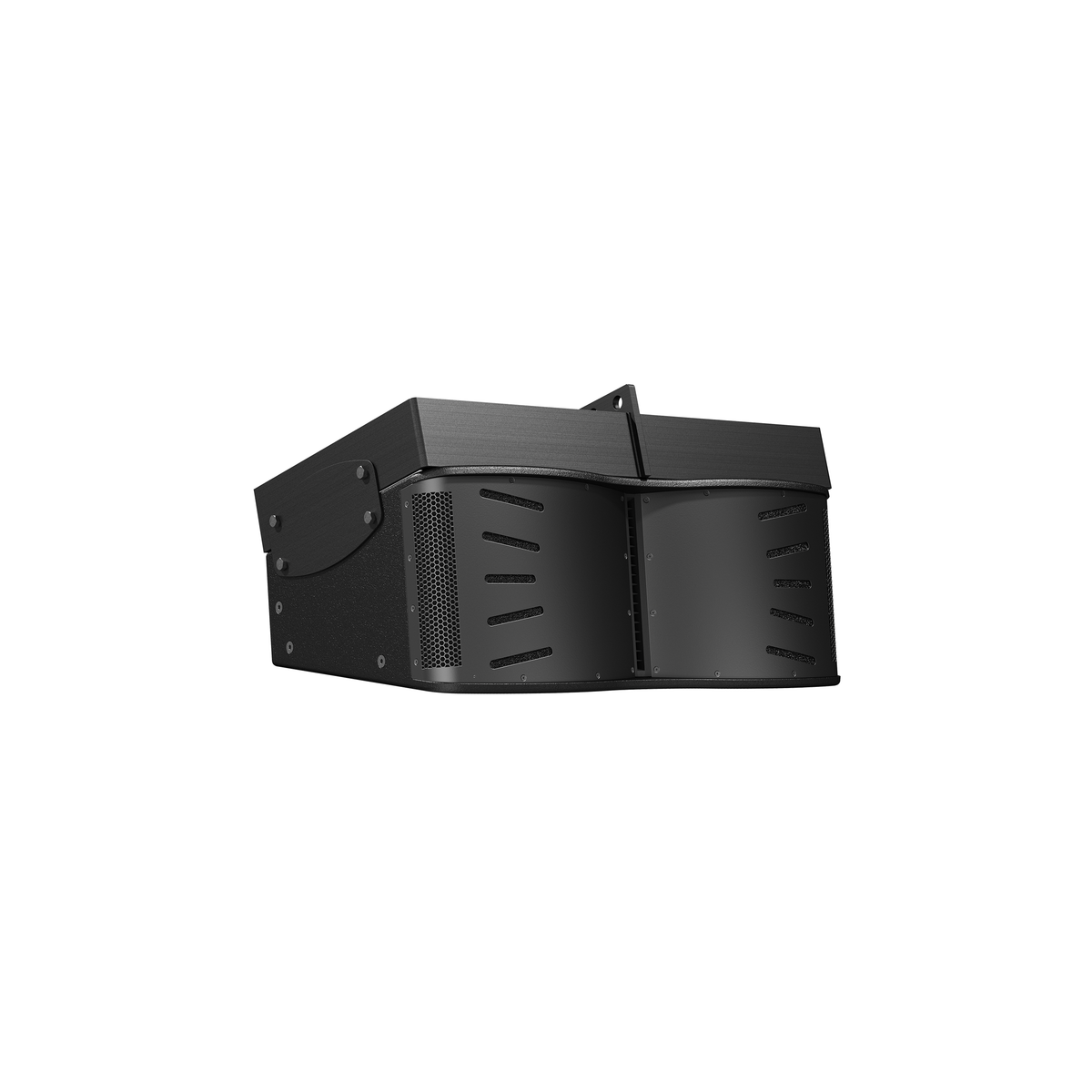

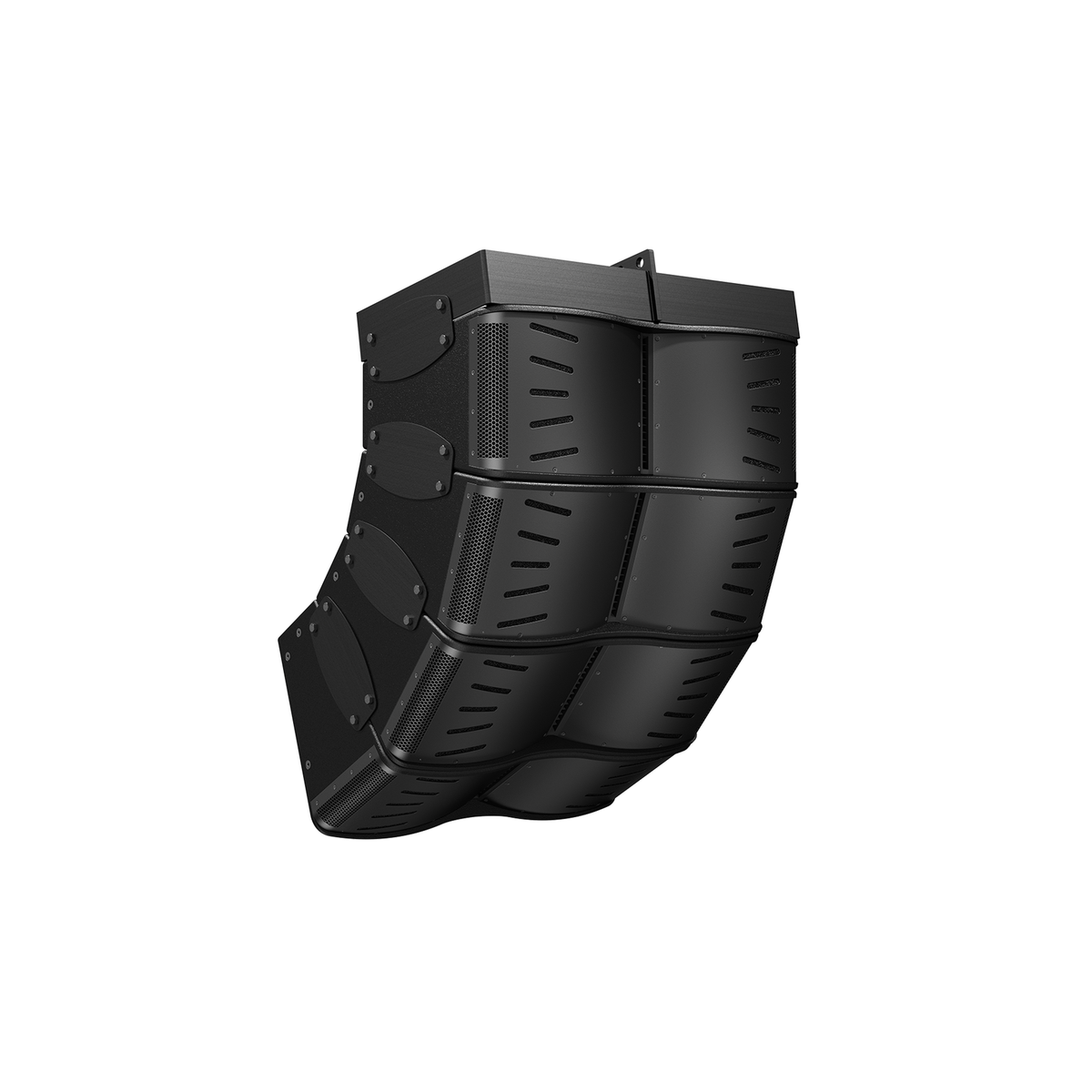

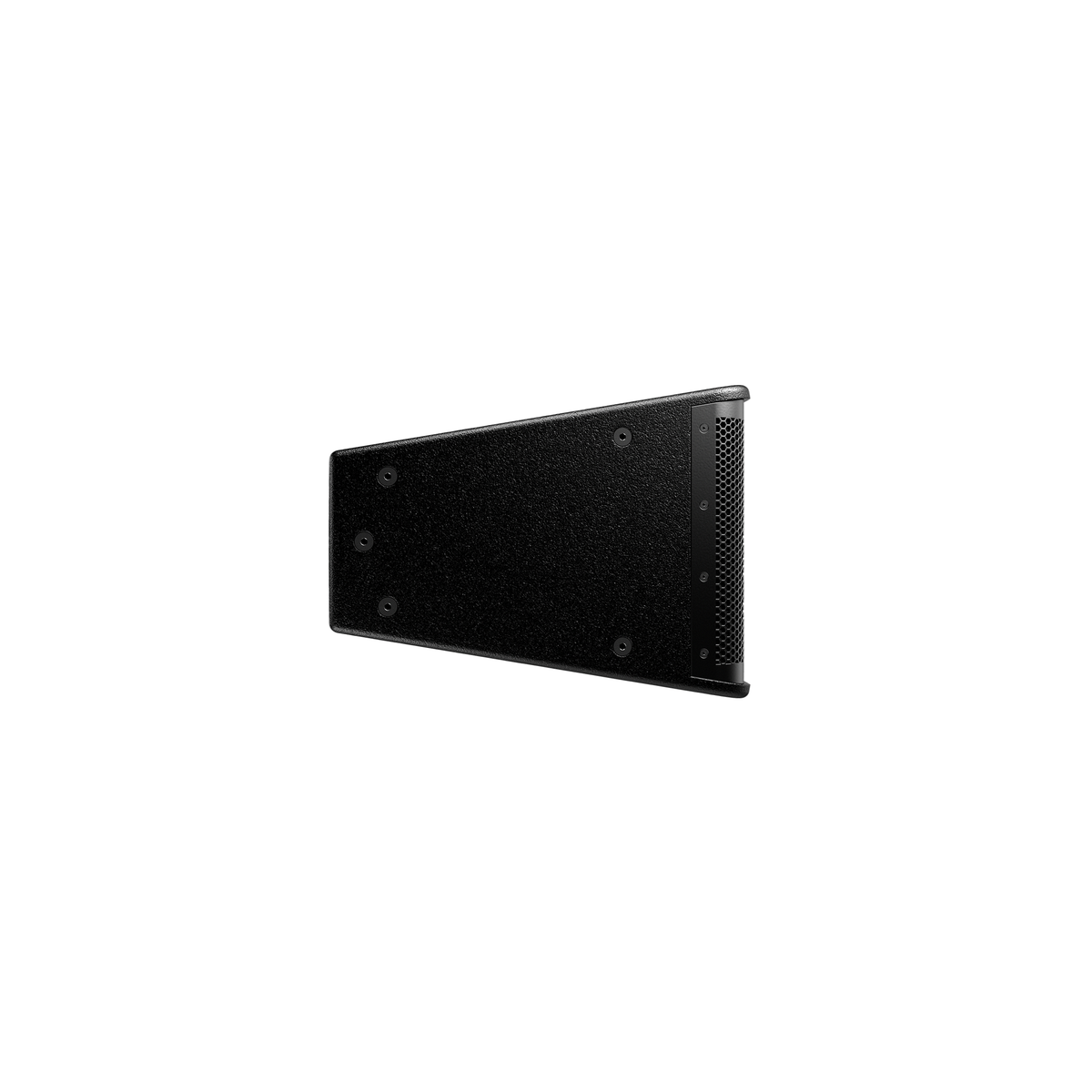

Sonance CCA10i Commercial Speaker
$0.00
Constant Curvature Array, Scalable 20° Vertical
Specifications
- HF Driver: Coaxial: 4" Voice Coil mid driver; 2.55" Voice Coil HF tweeter
- LF Driver: Dual 10" with 2.5" Voice Coils
- Frequency Response (+/- 10db): 45Hz - 18kHz
- Frequency Response (+/- 3db): 52Hz - 18kHz
- Power Handling (RMS): LF: 500W AES (2000W peak) @4Ω HF: 110W AES (440W peak) @8Ω
- Sensitivity: LF: 101dB HF: 111.4 dB
- Enclosure: Baltic birch plywood, engineered plastics, and aluminum frame
- Dimensions (WxHxD): 32.3" x 13.23" x 18.25" (820.42mm x 336.04mm x 463.55mm)
- Weight: 83 lbs. (37.65kg)
- Grille: 14-gauge (2mm) perforated steel, powder-coated finish, black
- Suspension Points: Install side rigging, optional array frame accessories
- Coverage (-6dB): Horizontal: 160 Degrees Vertical: 20 Degrees
- Maximum SPL (Peak): 140 dB
- Horizontal Nominal Dispersion (-6 dB): 160 Degrees
