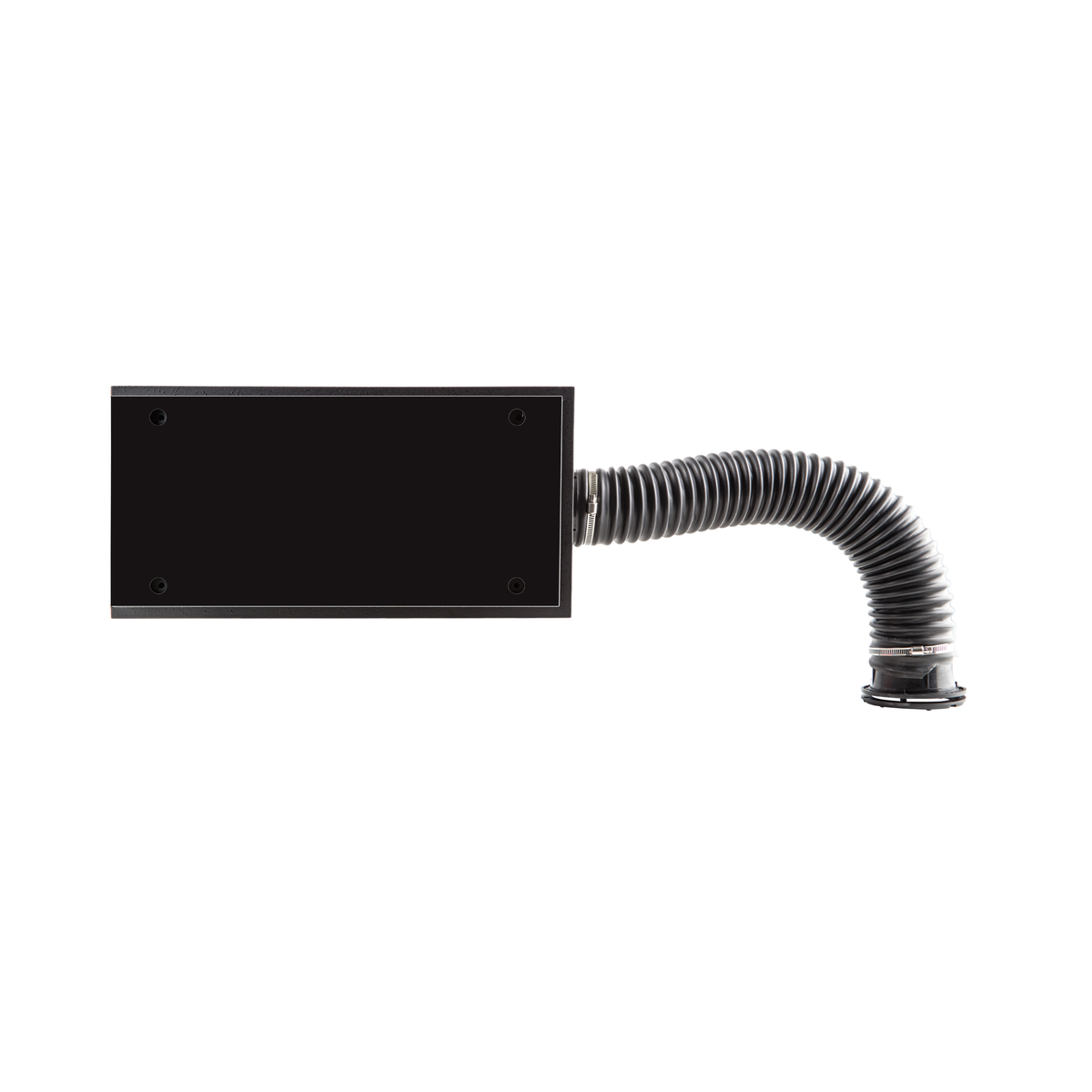

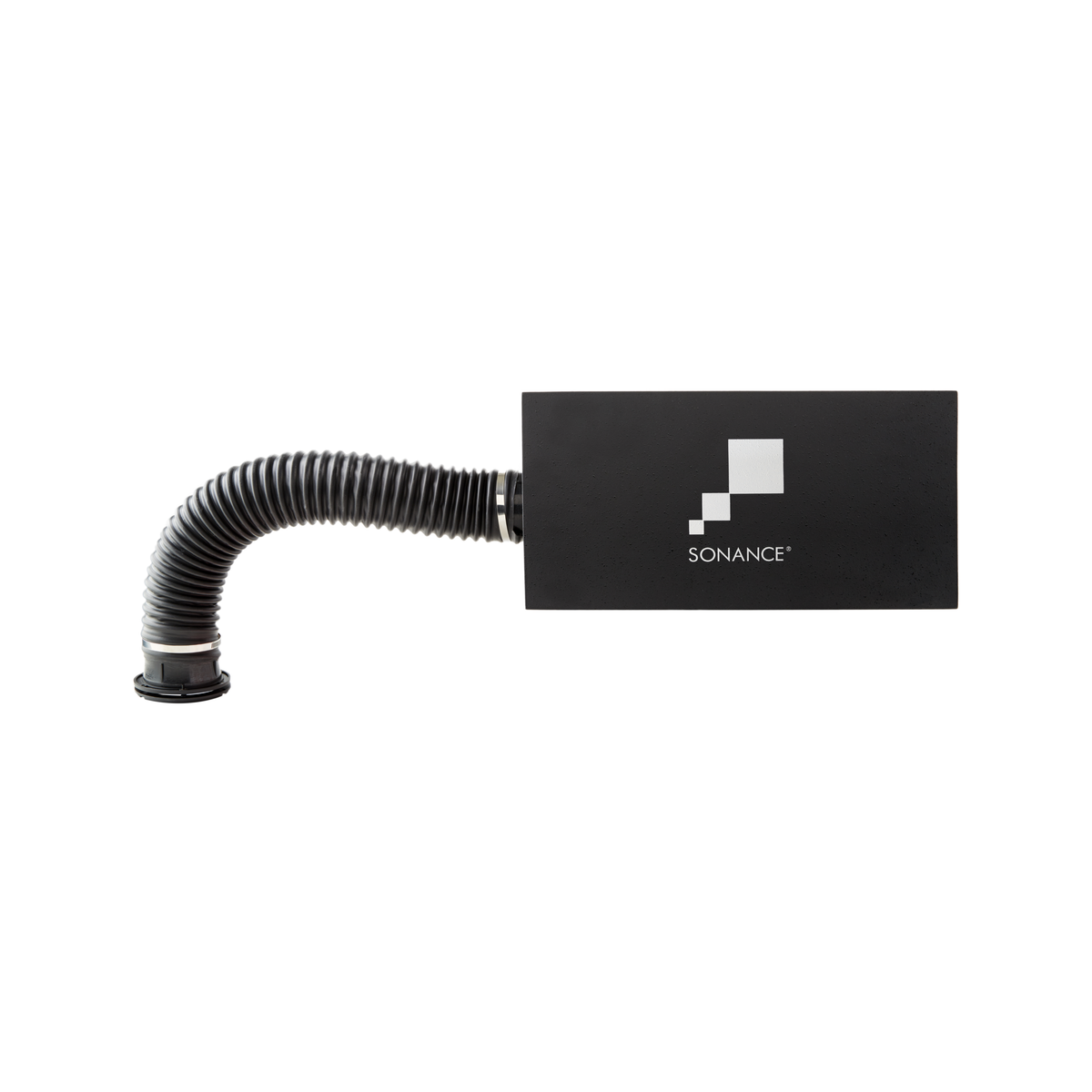

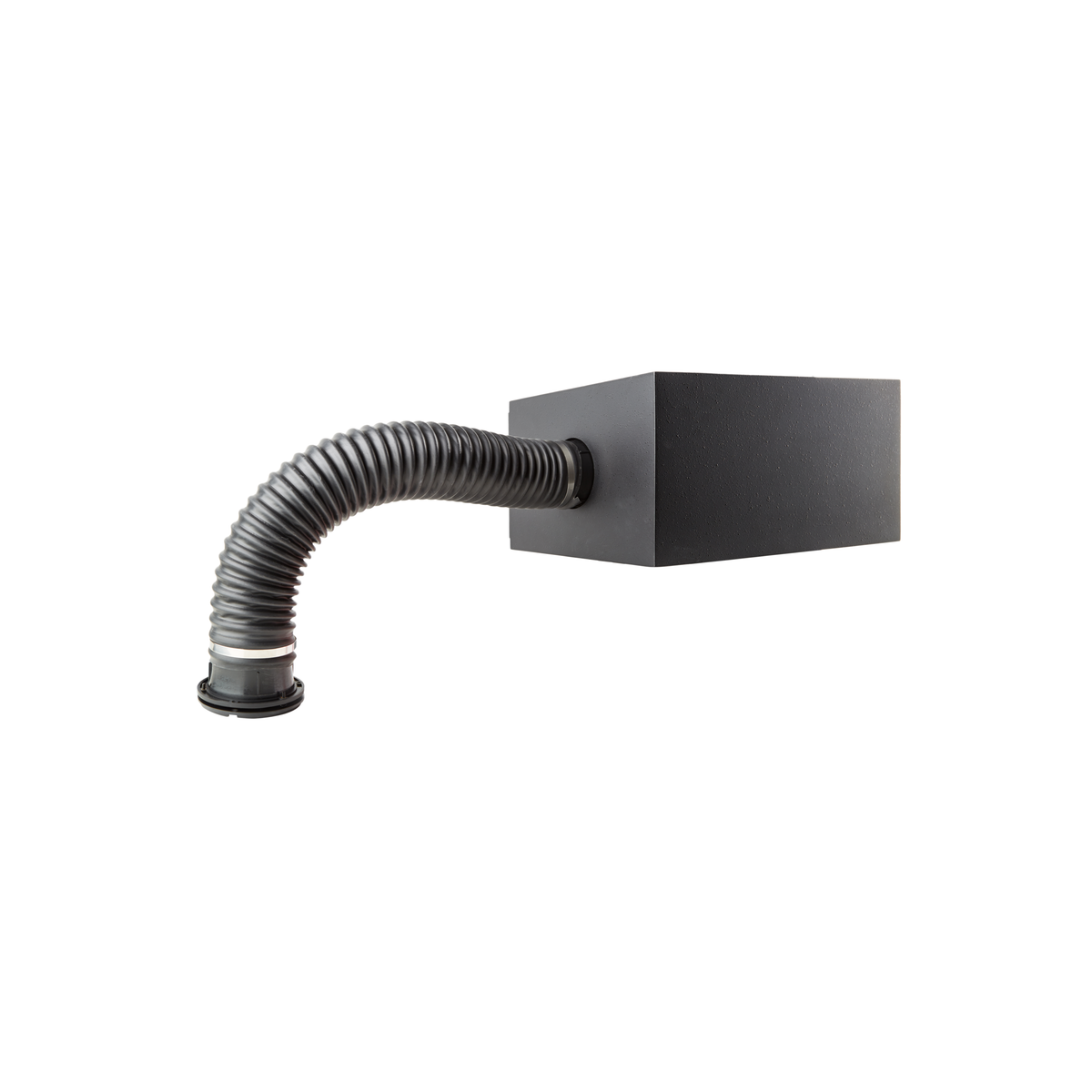

In-ceiling 6.5" bandpass subwoofer with discreet 4" grille opening. Ported with a bandpass hose to a bandpass connector and micro trim or trimless grille finish. Requires Sonance bandpass connector and grille. Requires Sonance gypsum or solid surface mounting platform for flush installations.
Specifications
- Speaker Woofer: 6.5" (165mm) dual voice coil, carbon fiber / Rohacell laminated cone with a rubber surround
- Frequency Response (+/- 3db): 40Hz - 125Hz
- Power Handling (RMS): 100 watts maximum
- Sensitivity: 87dB (2.83V/1m)
- Dimensions (WxHxD): 11.94" x 7.88" x 15.75" (303.21mm x 200.03mm x 400.05mm)
- Tube Diameter: 3" (76.2mm)
- Tube Length: 22" (558.8mm)
- Weight: 20.4 lbs. (9.25kg)
