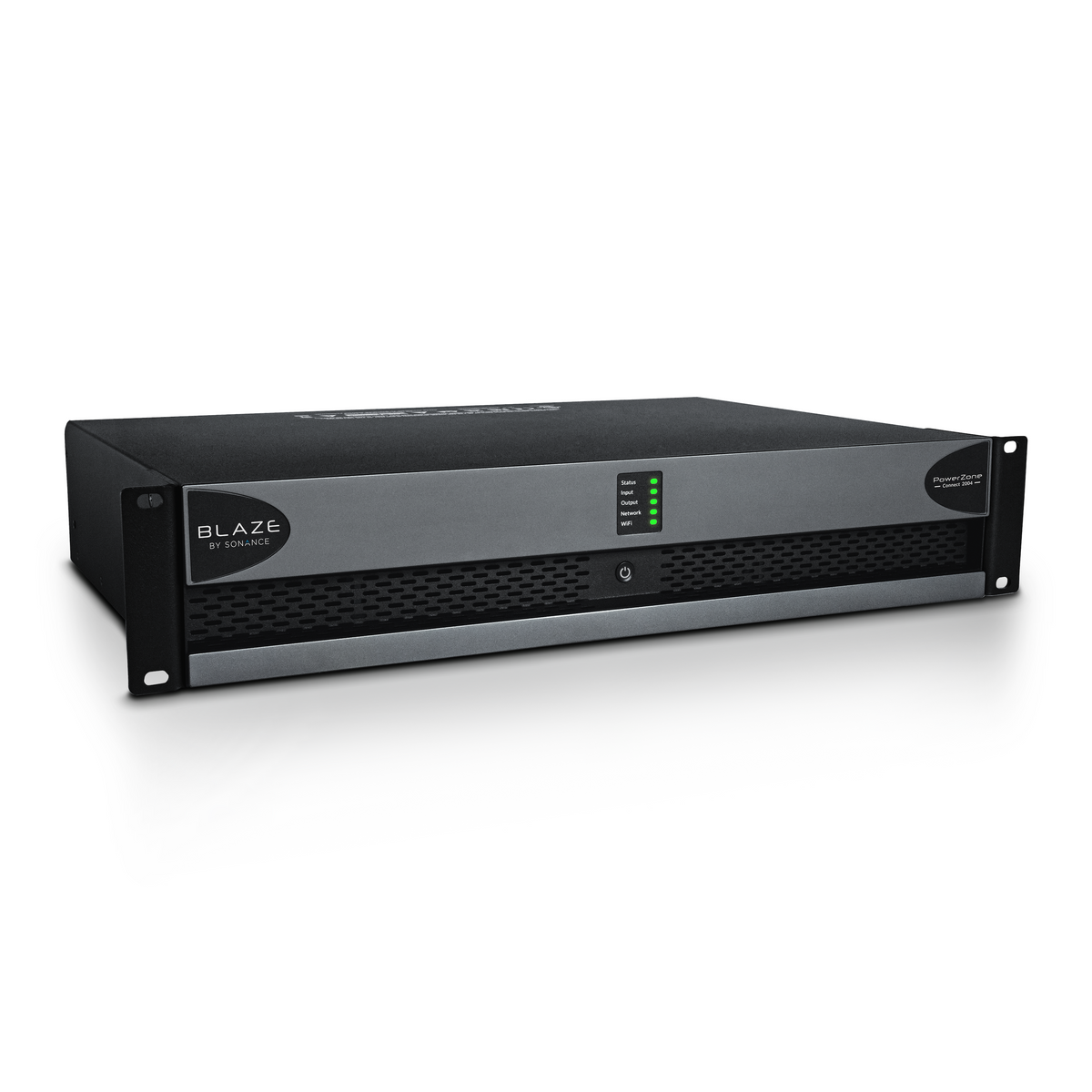

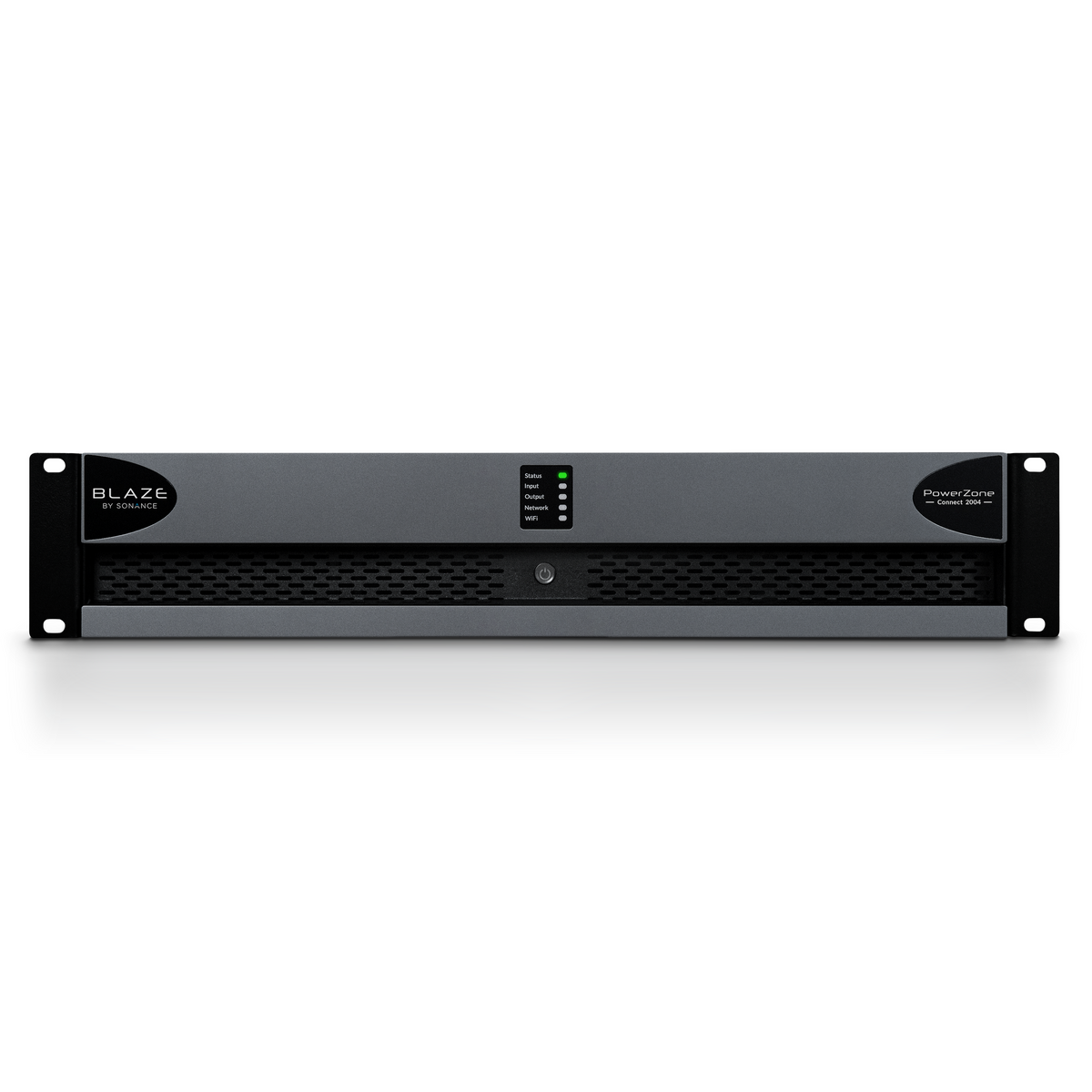

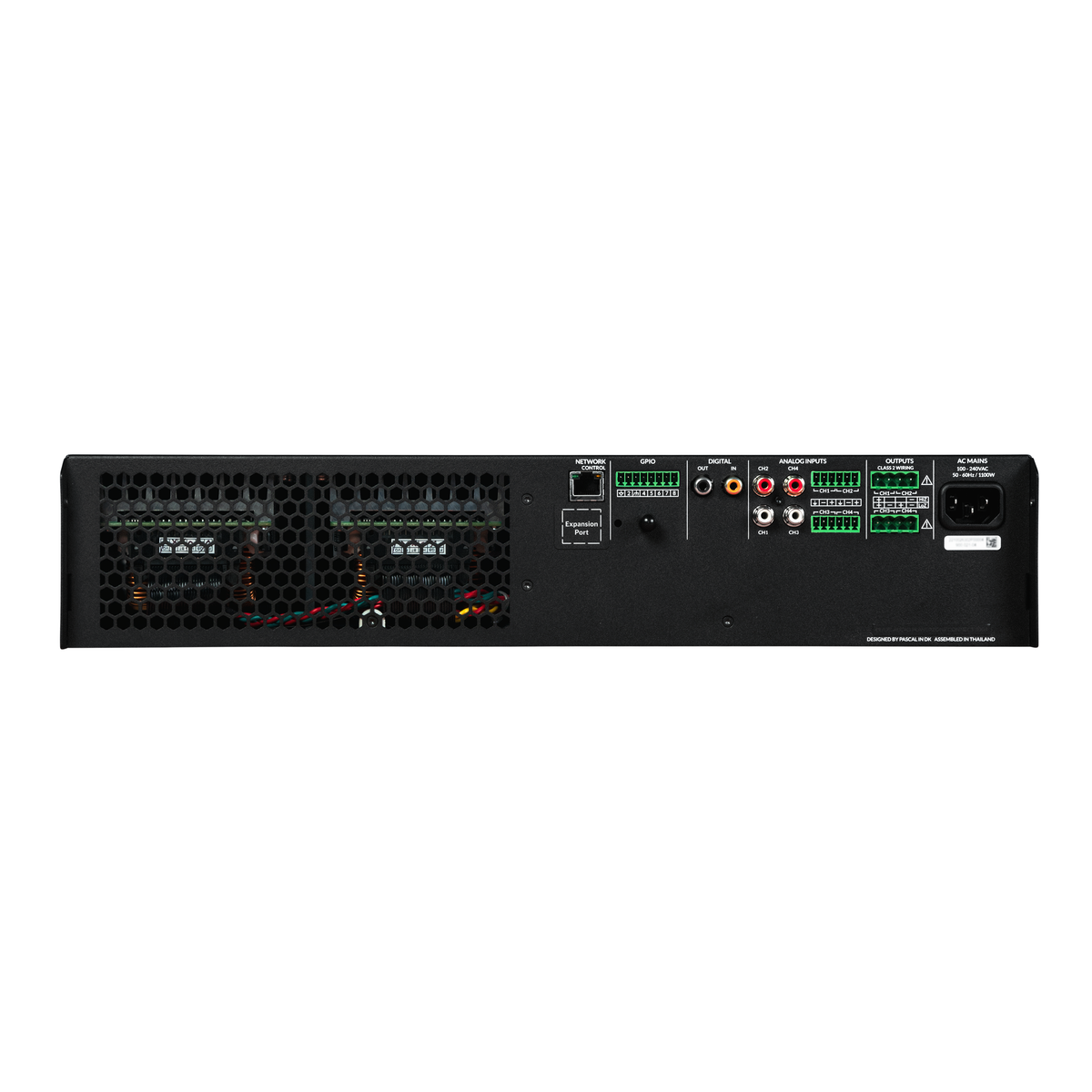

Blaze by Sonance PowerZone Connect 2004 DSP Power Amplifier
$0.00
Skip to product information
Blaze by Sonance PowerZone Connect 2004 DSP Power Amplifier
$0.00
Overview
Blaze by Sonance PowerZone Connect 2004 is a 2000 W DSP-enabled Class-D power amplifier for installed audio systems. Its 2U format combines amplification with built-in PowerZone Control processing.
Key Features
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP compliant
- UL listed audio equipment
- UREC universal power supply with PFC
- 5 Year warranty
Technical Specifications
| SKU | LBX-888-003 (PowerZone Connect 2004) |
|---|---|
| Dimensions (WxHxD) | 17.3" x 3.5" x 12.6" (439.42mm x 88.9mm x 320.04mm) |
| Weight | 16.31 lbs. (7.4kg) |
| Channel Configuration | Lo-Z: 4x500W @2/4Ω Hi-Z: 2x 1000W @70/100V |
| Total System Power | 2000 W |
| Output Power @ 2 ohms | 4 x 500 W (SE) |
| Output Power @ 4 ohms | 4 x 500 W (SE) 2 x 1000 W (BTL) |
| Output Power @ 8 ohms | 4 x 250 W (SE) 2 x 1000 W (BTL) |
| Output Power @ 70V | 2 x 1000 W (BTL) |
| Output Power @ 100V | 2 x 1000 W (BTL) |
| Powersharing | BTL |
| Power Consumption | 700 W |
| Built-in DSP | Yes |
| Dante Compatibility | No |
| Rack Units | 2U |
Installation and Documentation
For professional installation. Consult the official installation manual for wiring, load configuration and safety requirements.
